(34.012[001]) - CAB MODULE (OPTION) (S/N 581101-UP)

Запчасти Case 221D (34.012[001]) - CAB MODULE (OPTION) (S/N 581101-UP) (90) - PLATFORM, CAB, BODYWORK AND DECALS

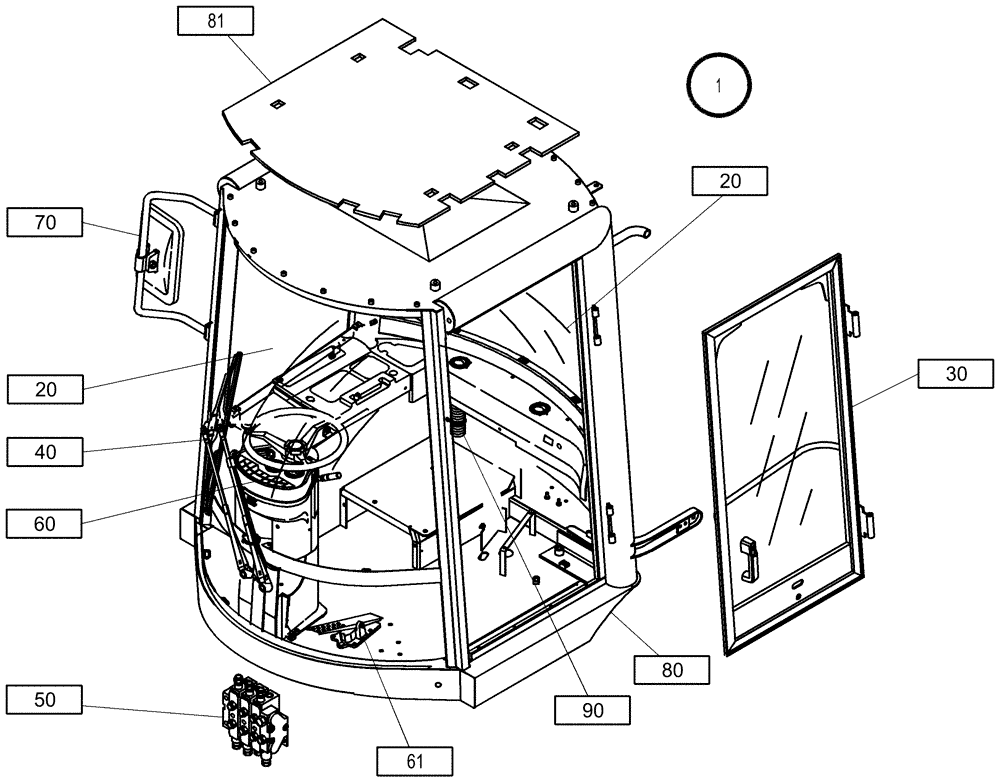

Схема запчастей Case 221D - (34.012[001]) - CAB MODULE (OPTION) (S/N 581101-UP) (90) - PLATFORM, CAB, BODYWORK AND DECALS
60
30
20
40
70
61
80
81
50
1
90
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

420775A1

CAB

1шт.

20

NS

NOT SERVICED

SEE FIGURE 34.230/001

1шт.

30

NS

NOT SERVICED

SEE FIGURE 34.220/001

1шт.

40

NS

NOT SERVICED

SEE FIGURE 34.022/002

1шт.

50

NS

NOT SERVICED

SEE FIGURE 23.610/001

1шт.

60

NS

NOT SERVICED

SEE FIGURE 34.130/001

1шт.

61

NS

NOT SERVICED

SEE FIGURE 20.540/003

1шт.

70

NS

NOT SERVICED

SEE FIGURE 34.021/001

1шт.

80

NS

NOT SERVICED

SEE FIGURE 34.022/001

1шт.

81

NS

NOT SERVICED

SEE FIGURE 34.250/001

1шт.

90

NS

NOT SERVICED

SEE FIGURE 27.010/001

1шт.

Выбрано товаров: 11
