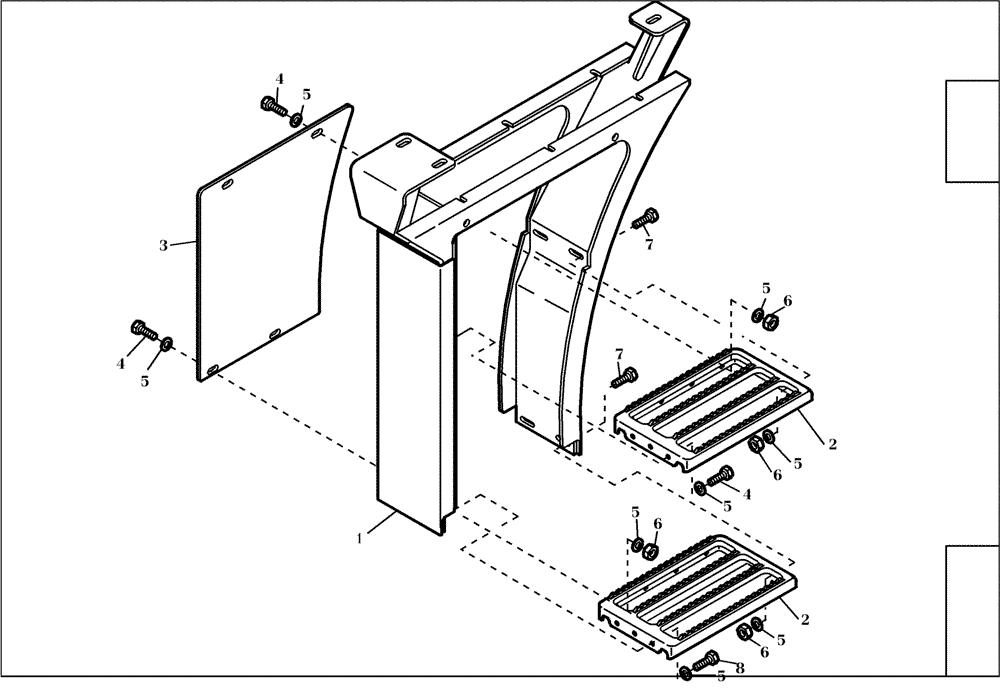

Запчасти Case 221D (01.812[002]) - STEPS COMPLETE LEFT-HAND (S/N 581101-581126) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

423524A1

FOOT BOARD

1шт.

2

423522A1

STEP

2шт.

3

423525A1

COVER

1шт.

4

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

6шт.

5

423526A1

WASHER

20шт.

6

832-10408

NUT,M8 x 1.25, Cl 8.8

8шт.

7

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

8

423527A1

CAPSCREW

2шт.
