(01.811[002]) - STEPS MOUNTING PARTS (S/N 581101-581126)

Запчасти Case 221D (01.811[002]) - STEPS MOUNTING PARTS (S/N 581101-581126) (90) - PLATFORM, CAB, BODYWORK AND DECALS

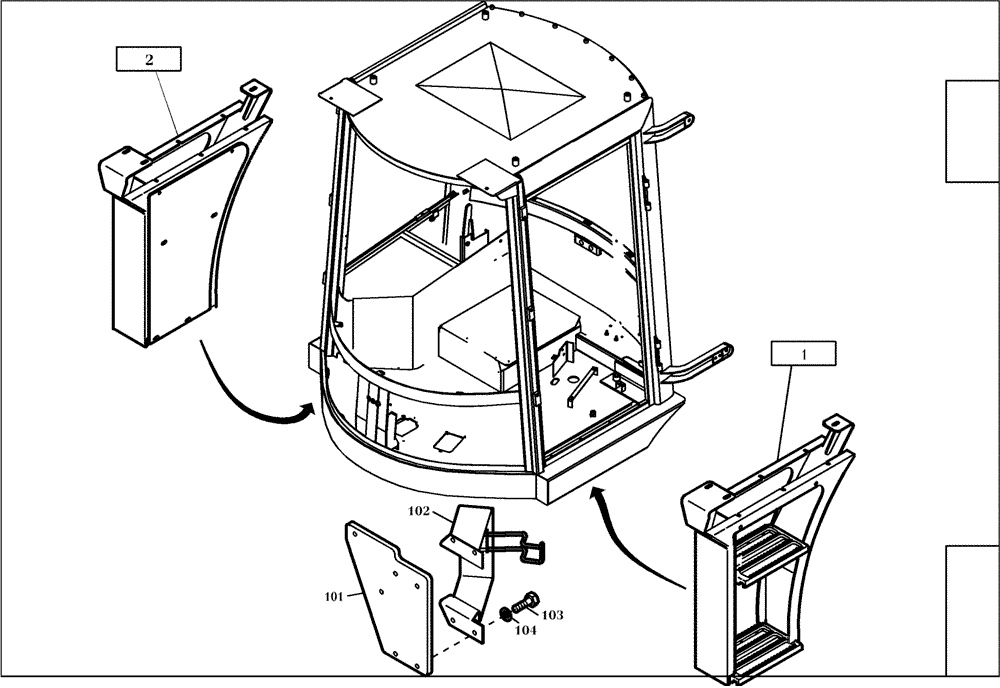

Схема запчастей Case 221D - (01.811[002]) - STEPS MOUNTING PARTS (S/N 581101-581126) (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
104
1
102
101
103
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

SEE FIGURE 01.812/002

1шт.

2

NS

NOT SERVICED

SEE FIGURE 01.812/003

1шт.

101

423515A1

SUPPORT

1шт.

102

423516A1

SUPPORT

1шт.

103

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

4шт.

104

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.
