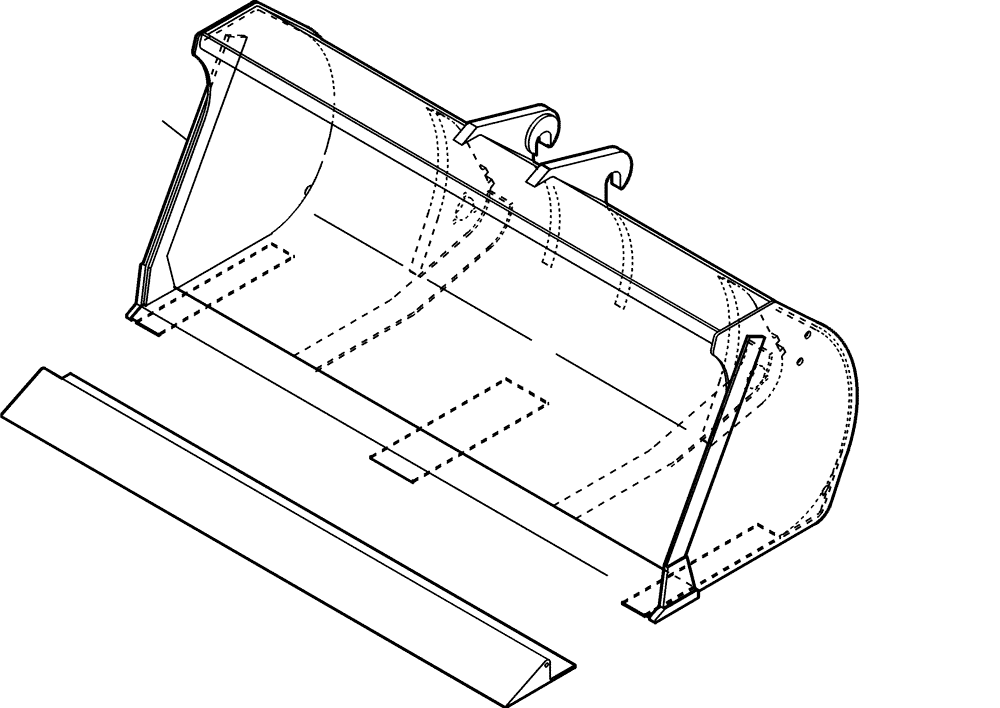

Запчасти Case 221D (64.200[001]) - LOADING BUCKET INSTALLATION 900 L (OPTION) (S/N 581101-UP) (82) - FRONT LOADER & BUCKET

1

421905A1

BUCKET

1шт.

101

NS

NOT SERVICED

SEE FIGURE 64.202/004

1шт.

106

NS

NOT SERVICED

SEE FIGURE 42.050/002

1шт.

202

421312A1

STOP

2шт.

203

421845A1

COVER

4шт.

204

421846A1

BALL BEARING

2шт.

205

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

4шт.

207

420268A1

LUBE NIPPLE

2шт.

208

421314A1

SCREW

16шт.

211

424322A1

LOCK WASHER

4шт.

212

421847A1

WASHER

4шт.

213

421318A1

PLATE

2шт.

214

421319A1

PLATE

2шт.

215

420231A1

WASHER

2шт.

216

421320A1

WASHER

2шт.

301

423943A1

PLATE

1шт.

304

420260A1

BUMPER

1шт.

305

825-1416

NUT,M16, Cl 8

1шт.

306

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

1шт.
