/ / / / / / / / (60.501[001]) - LOADER BOOM MOUNTING PARTS (OPTION) (S/N 581101-UP)
Запчасти Case 221D (60.501[001]) - LOADER BOOM MOUNTING PARTS (OPTION) (S/N 581101-UP) (82) - FRONT LOADER & BUCKET

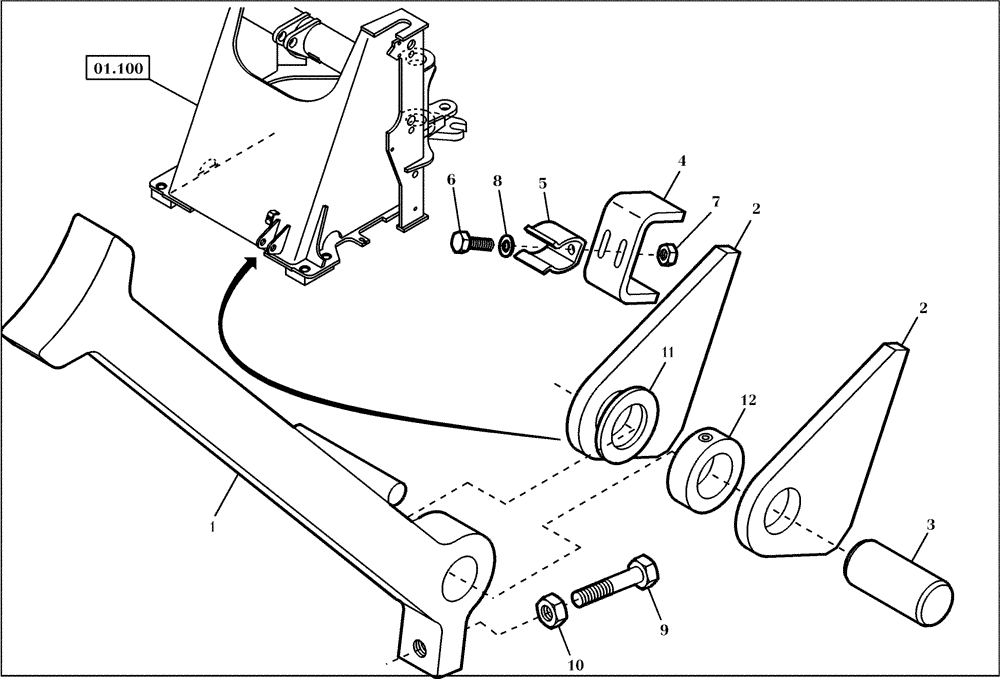

![Схема запчастей Case 221D - (60.501[001]) - LOADER BOOM MOUNTING PARTS (OPTION) (S/N 581101-UP) (82) - FRONT LOADER & BUCKET](https://partsell.ru/storage/images/casece/66540.png)
6
10
5
9
3
11
8
4
01.100
2
2
7
12
1
1
421543A1
LEVER
1шт.
2
423756A1
PLATE
2шт.
3
423757A1
PIN
1шт.
4
423758A1
BRACKET
1шт.
5
421547A1
SPRING
1шт.
6
423759A1
BOLT
2шт.
7
824-1405
NUT,M5, Cl 5
2шт.
8
895-11005
WASHER,5.5mm ID x 10mm OD x 1mm Thk
2шт.
9
421551A1
CAPSCREW,Hex
1шт.
10
825-1412
NUT,M12, Cl 8
1шт.
11
423760A1
WASHER
1шт.
12
423761A1
CENTERING RING
1шт.
