(32.500[002]) - ELECTRICAL SYSTEM CAB FAST GEAR (OPTION) (S/N 581101-UP)

Запчасти Case 221D (32.500[002]) - ELECTRICAL SYSTEM CAB FAST GEAR (OPTION) (S/N 581101-UP) (55) - ELECTRICAL SYSTEMS

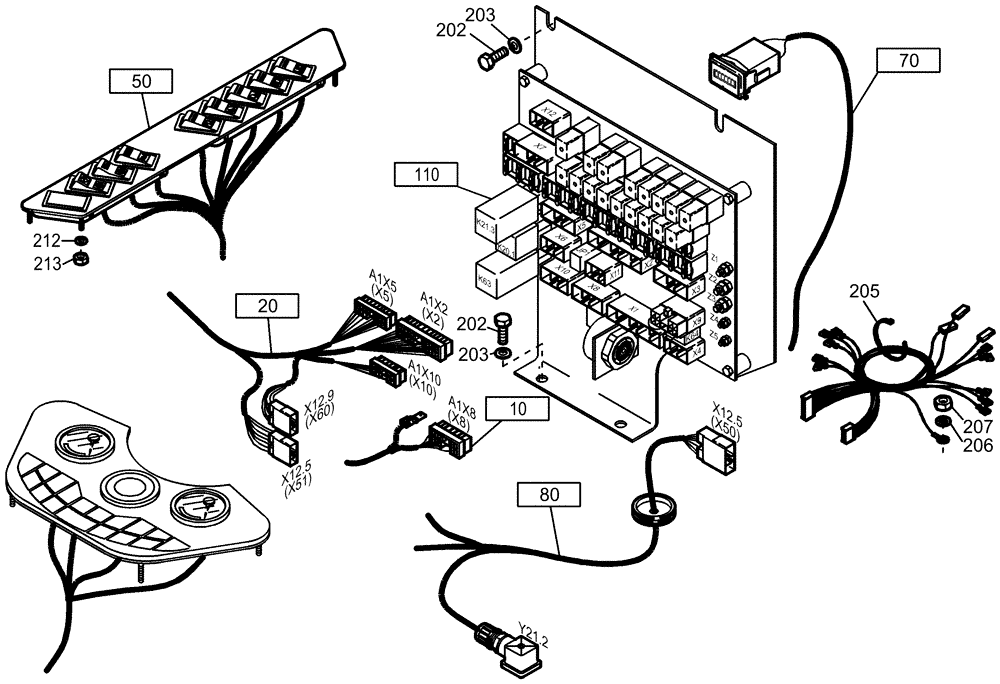

Схема запчастей Case 221D - (32.500[002]) - ELECTRICAL SYSTEM CAB FAST GEAR (OPTION) (S/N 581101-UP) (55) - ELECTRICAL SYSTEMS
x4
x1
z3
(x10)
k64
x10
a1x2
203
a1x5
(x51)
206
x8
z4
0
k63
x12.9
0
70
z1
205
20
213
202
0
k21.3
0
x6
a1x10
x12.5
z2
(x50)
110
(x2)
x12.5
212
(x5)
50
0
x3
(x60)
y21.2
x2
203
x12
k20.1
207
jp1
z5
x5
10
x7
202
0
a1x8
x11
(x8)
80
x9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

10

NS

NOT SERVICED

SEE FIGURE 32.510/001

1шт.

20

NS

NOT SERVICED

SEE FIGURE 32.133/004

1шт.

50

NS

NOT SERVICED

SEE FIGURE 32.420/003

1шт.

70

NS

NOT SERVICED

SEE FIGURE 32.153/003

1шт.

80

NS

NOT SERVICED

SEE FIGURE 32.433/003

1шт.

110

NS

NOT SERVICED

SEE FIGURE 32.152/004

1шт.

202

421252A1

SCREW

4шт.

203

421253A1

WASHER

4шт.

205

421254A1

CLIP

19шт.

206

421255A1

WASHER

4шт.

207

421256A1

NUT

4шт.

212

421257A1

WASHER

4шт.

213

421258A1

NUT

4шт.
