Запчасти Case 221D (32.423[002]) - CABLE HARNESS CONTROL PANEL CANOPY (OPTION) (S/N 581101-UP) (55) - ELECTRICAL SYSTEMS

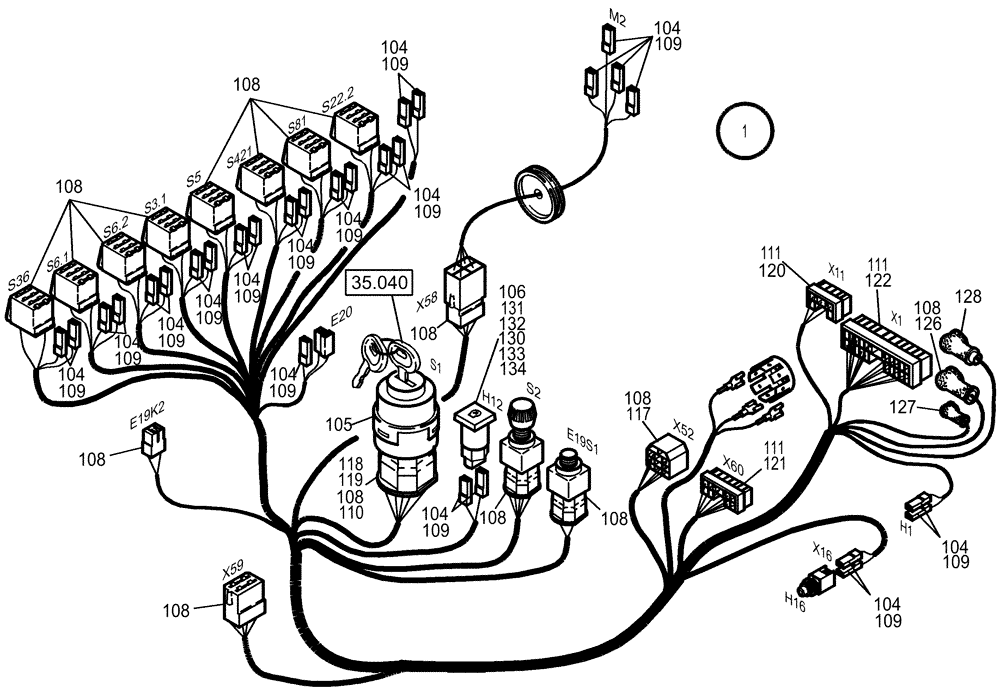

![Схема запчастей Case 221D - (32.423[002]) - CABLE HARNESS CONTROL PANEL CANOPY (OPTION) (S/N 581101-UP) (55) - ELECTRICAL SYSTEMS](https://partsell.ru/storage/images/casece/189690.png)
104
108
109
120
109
127
104
m2
109
x59
109
109
s22.2
119
104
108
104
h12
108
104
s2
111
109
134
104
104
h1
x60
109
s3.1
109
x1
108
106
104
109
111
105
109
e19k2
108
s36
s6.2
104
109
118
128
s421
108
130
x11
h16
108
x52
s5
109
s81
x58
132
122
104
131
x16
e20
108
126
104
117
121
e19s1
35.040
133
109
111
104
s1
s6.1
108
108
1
104
104
109
110
1
421092A1
NOT SERVICED
1шт.
101
421116A1
TERMINAL CONNECTOR
1шт.
102
421218A1
TERMINAL CONNECTOR
1шт.
103
421188A1
TERMINAL CONNECTOR
1шт.
104
421163A1
CAP
6шт.
105
421191A1
IGNITION SWITCH
1шт.
106
421192A1
BULB
1шт.
107
421092A1
NOT SERVICED
30шт.
108
421118A1
BUSHING
7шт.
109
421119A1
ELEC CONNECTOR
6шт.
110
421196A1
BUSHING
3шт.
111
421121A1
BUSHING
27шт.
112
421092A1
NOT SERVICED
30шт.
113
421166A1
BUSHING
17шт.
114
421092A1
NOT SERVICED
2шт.
115
421092A1
NOT SERVICED
4шт.
116
421092A1
NOT SERVICED
1шт.
117
421199A1
SOCKET
1шт.
118
421202A1
SOCKET
1шт.
119
421203A1
SOCKET
1шт.
120
421205A1
SOCKET
1шт.
121
421206A1
SOCKET
1шт.
122
421141A1
SOCKET
1шт.
123
421092A1
NOT SERVICED
7шт.
124
421092A1
NOT SERVICED
2шт.
125
421092A1
NOT SERVICED
2шт.
126
421208A1
BAR
1шт.
127
421209A1
BAR
1шт.
128
421210A1
CAP
1шт.
129
421092A1
NOT SERVICED
40шт.
130
421212A1
PLATE
1шт.
131
421213A1
SOCKET/RECEPTACLE
1шт.
132
421214A1
SOCKET
1шт.
133
421215A1
HOLDER
1шт.
134
421216A1
PLATE
1шт.
