(32.175[001]) - MAIN SWITCH BATTERY INSTALLATION (OPTION) (S/N 581101-UP)

Запчасти Case 221D (32.175[001]) - MAIN SWITCH BATTERY INSTALLATION (OPTION) (S/N 581101-UP) (55) - ELECTRICAL SYSTEMS

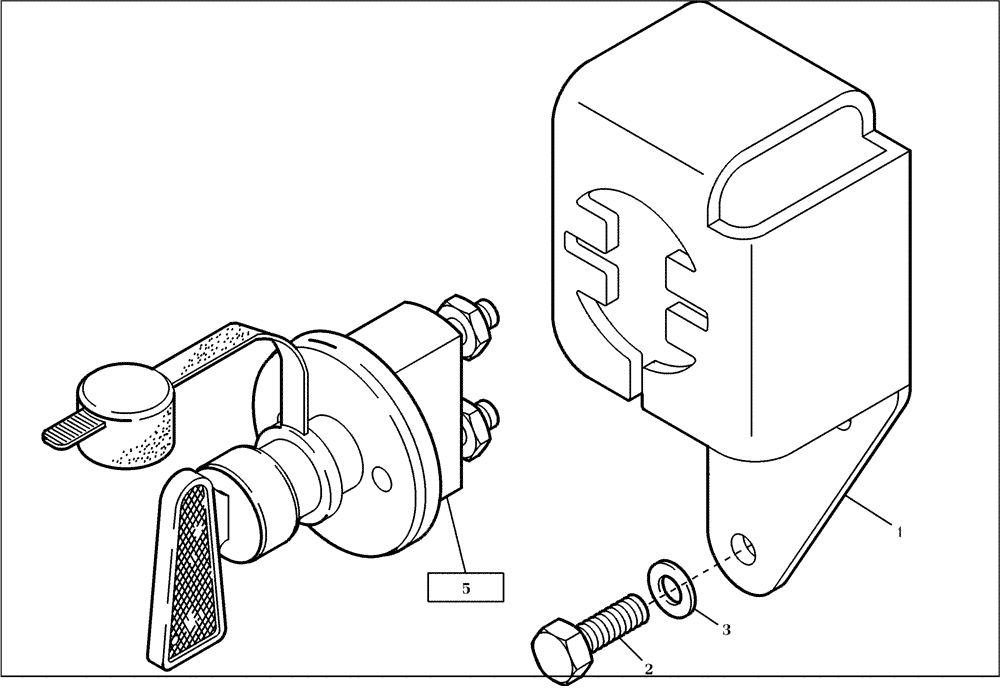

Схема запчастей Case 221D - (32.175[001]) - MAIN SWITCH BATTERY INSTALLATION (OPTION) (S/N 581101-UP) (55) - ELECTRICAL SYSTEMS
3
2
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

423575A1

BRACKET

1шт.

2

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

3

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

5

NS

NOT SERVICED

SEE FIGURE 32.175/002

1шт.
