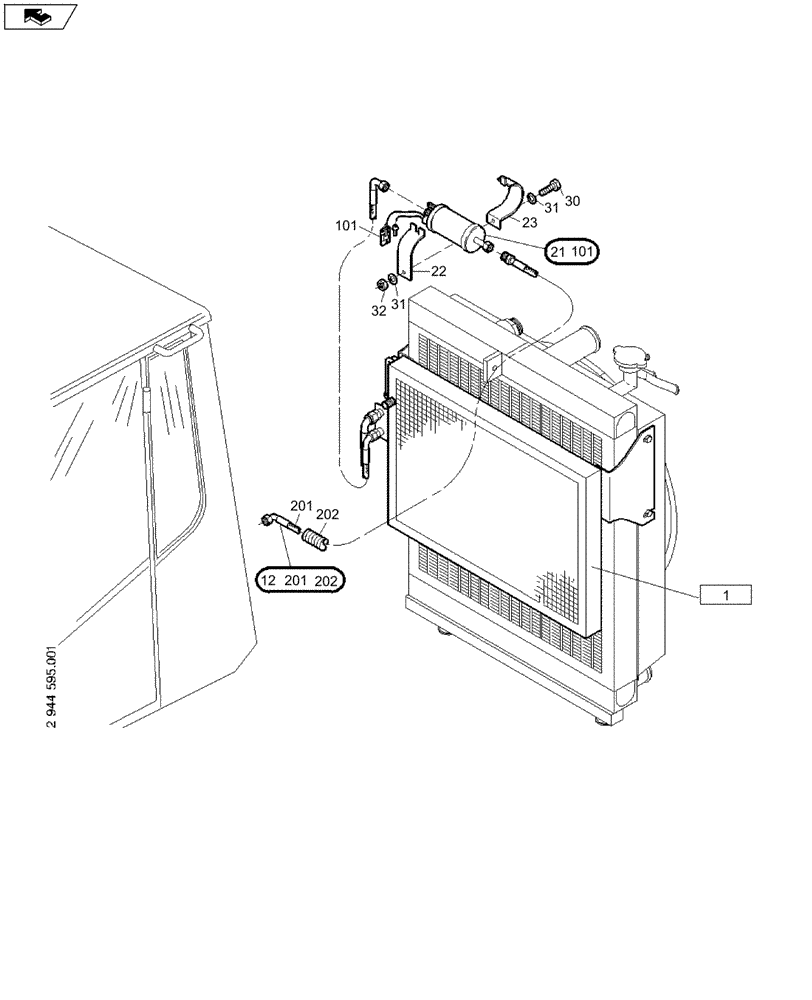

Запчасти Case 221D (27.420[001]) - LIQUEFIER INSTALLATION (OPTION) (S/N 581101-UP) (50) - CAB CLIMATE CONTROL

1

NS

NOT SERVICED

SEE FIGURE 27.420/002

1шт.

12

4550894

HOSE

1шт.

21

2928293

RECEIVER-DRYER

1шт.

22

2928295

BRACKET

1шт.

23

2928296

BRACKET

1шт.

30

54405

BOLT,Hex, M8 x 25, 8.8

1шт.

31

2975165

WASHER

2шт.

32

57126

NUT,Hex, M8, Cl 8

1шт.

101

1493599

PRESSURE SWITCH

1шт.

201

4550654

HOSE

1шт.

202

1360732

HOSE PROTECTION

1шт.
