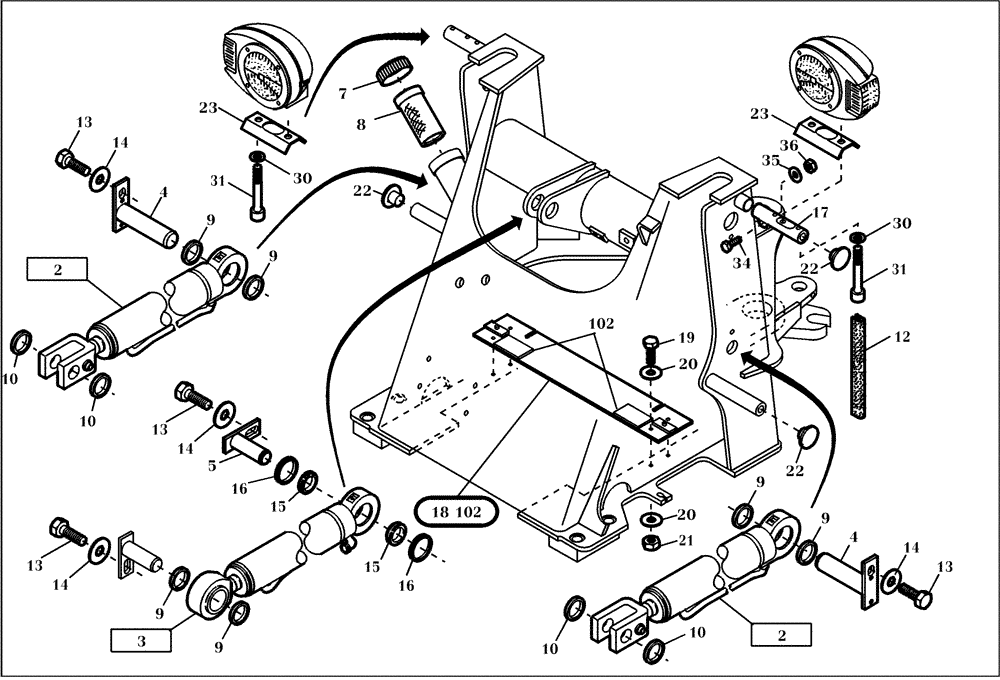

Запчасти Case 221D (01.400[001]) - FRONT FRAME COMPONENTS (S/N 581101-581201) (39) - FRAMES AND BALLASTING

2

NS

NOT SERVICED

SEE FIGURE 24.072/001

2шт.

3

NS

NOT SERVICED

SEE FIGURE 24.082/001

1шт.

4

421633A1

PIN

2шт.

5

421634A1

PIN

1шт.

7

420735A1

LOCKABLE FUEL CAP

1шт.

8

420736A1

SIEVE

1шт.

9

421635A1

SEALING RING

SEALRING

6шт.

10

421636A1

SEALING RING

4шт.

12

420196A1

GUARD

1шт.

13

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

6шт.

14

420197A1

WASHER

6шт.

15

421637A1

RING

4шт.

16

421638A1

SCRAPER

4шт.

17

420198A1

HOLDER

2шт.

18

421639A1

SUPPORT ASSY.

1шт.

19

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

4шт.

20

420217A1

WASHER

8шт.

21

43362

NUT,M8 x 1.25, Cl 10

4шт.

22

420199A1

PLUG

4шт.

23

420200A1

PLATE

2шт.

26

421642A1

HOLDER

1шт.

30

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

31

864-8055

HEX SOC SCREW,M8 x 55mm, Cl 8.8

4шт.

32

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

4шт.

34

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

35

420201A1

WASHER

2шт.

36

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

102

421641A1

RUBBER PAD

2шт.
