(23.611[002]) - HYDRAULIC CONTROLS MOUNTING PARTS (OPTION) (S/N 581101-UP)

Запчасти Case 221D (23.611[002]) - HYDRAULIC CONTROLS MOUNTING PARTS (OPTION) (S/N 581101-UP) (35) - HYDRAULIC SYSTEMS

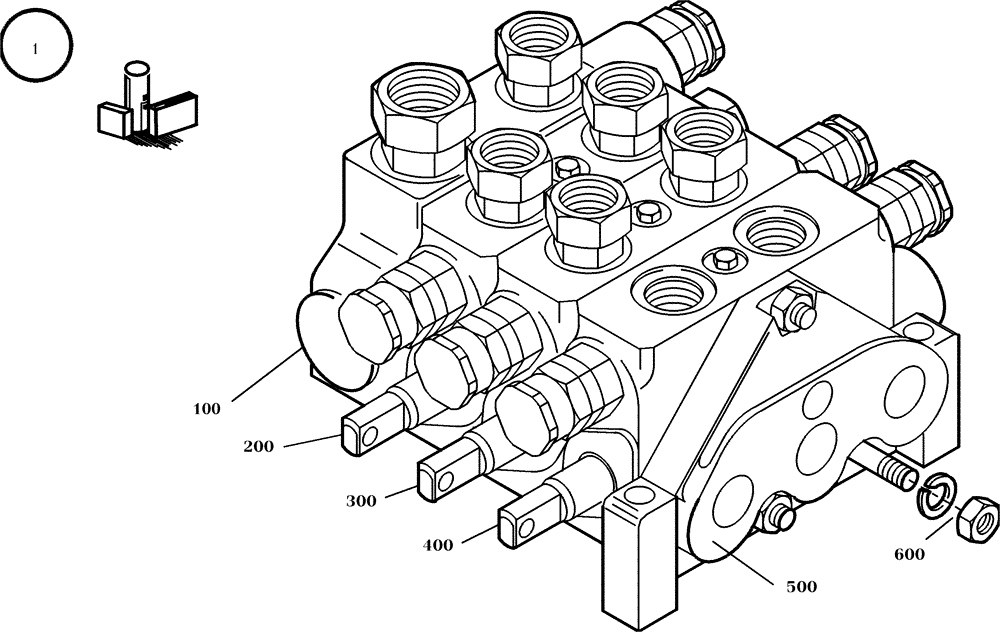

Схема запчастей Case 221D - (23.611[002]) - HYDRAULIC CONTROLS MOUNTING PARTS (OPTION) (S/N 581101-UP) (35) - HYDRAULIC SYSTEMS
1
300
100
600
500
400
200
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

422876A1

CONTROL BLOCK

1шт.

100

422877A1

VALVE

1шт.

100

NS

NOT SERVICED

SEE FIGURE 23.612/002

1шт.

200

422879A1

VALVE

1шт.

200

NS

NOT SERVICED

SEE FIGURE 23.612/001

1шт.

300

422881A1

VALVE

1шт.

300

NS

NOT SERVICED

SEE FIGURE 23.612/003

1шт.

400

422883A1

VALVE

1шт.

400

NS

NOT SERVICED

SEE FIGURE 23.612/004

1шт.

500

422885A1

PLATE

1шт.

600

422886A1

SCREW

1шт.

Выбрано товаров: 11
