(23.091[001]) - STEERING VALVE MOUNTING PARTS (OPTION) (S/N 581101-UP)

Запчасти Case 221D (23.091[001]) - STEERING VALVE MOUNTING PARTS (OPTION) (S/N 581101-UP) (35) - HYDRAULIC SYSTEMS

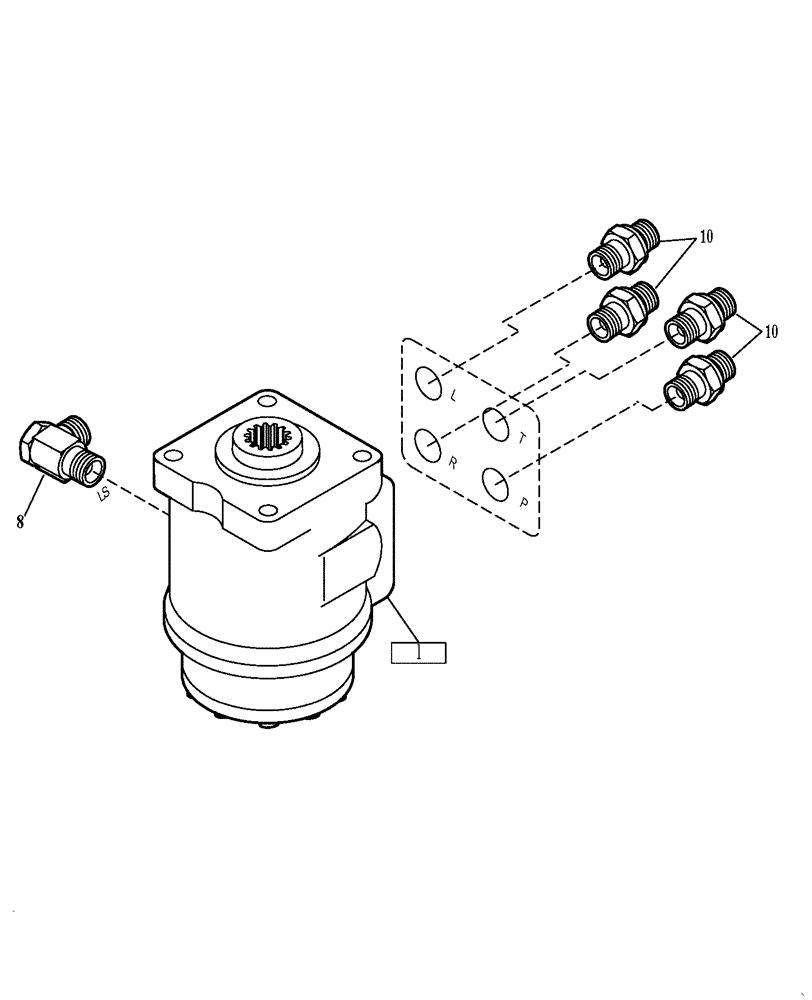

Схема запчастей Case 221D - (23.091[001]) - STEERING VALVE MOUNTING PARTS (OPTION) (S/N 581101-UP) (35) - HYDRAULIC SYSTEMS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

420776A1

STEERING CYLINDER

1шт.

1

NS

NOT SERVICED

SEE FIGURE 23.092/001

1шт.

8

420797A1

PIPE FITTING

1шт.

10

420798A1

HYD CONNECTOR

4шт.

Выбрано товаров: 4
