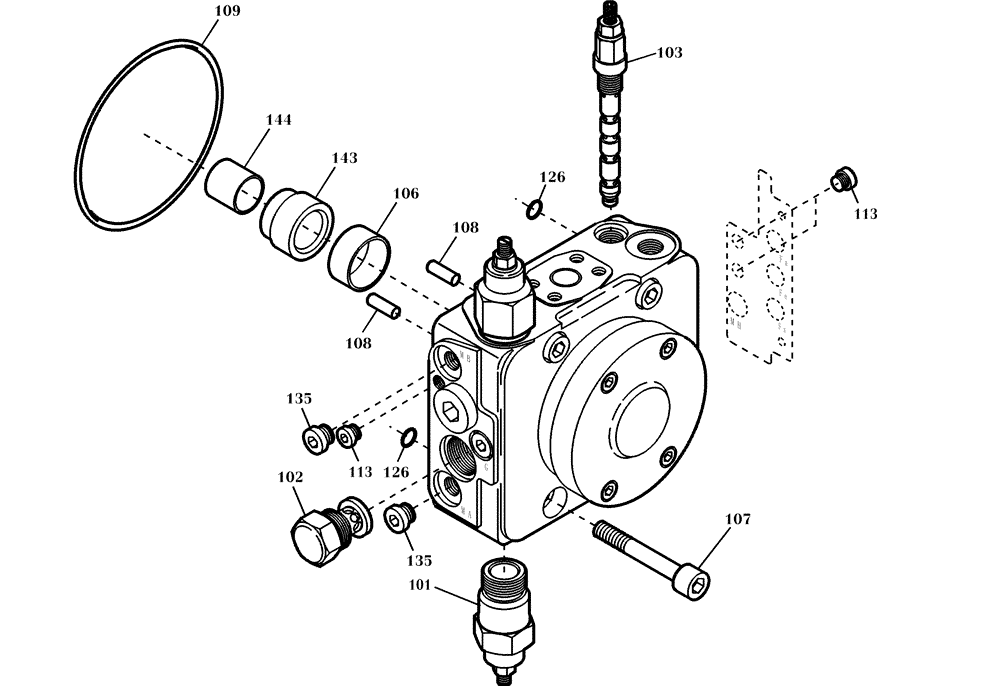

Запчасти Case 221D (22.430[001]) - PUMP ADJUSTING ASS PUMP INSTALLATION (S/N 581101-UP) (35) - HYDRAULIC SYSTEMS

1

421748A1

DISTRIBUTOR

1шт.

101

420614A1

PIANO WIRE

1шт.

101

NS

NOT SERVICED

SEE FIGURE 23.032/002

2шт.

102

420621A1

PRESSURE LIMITER

1шт.

102

NS

NOT SERVICED

SEE FIGURE 23.032/003

1шт.

103

421749A1

SHUT-OFF VALVE

1шт.

103

NS

NOT SERVICED

SEE FIGURE 23.192/001

1шт.

106

421751A1

BUSHING

1шт.

107

421752A1

SCREW

4шт.

108

421753A1

PIN

2шт.

109

421754A1

O-RING

1шт.

113

420646A1

PLUG

3шт.

126

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

135

420647A1

PLUG

2шт.

143

421755A1

BUSHING

1шт.

144

421756A1

BUSHING

1шт.
