(20.010[001]) - HYDRAULIC SYSTEM BASIC MACHINE (S/N 581101-UP)

Запчасти Case 221D (20.010[001]) - HYDRAULIC SYSTEM BASIC MACHINE (S/N 581101-UP) (35) - HYDRAULIC SYSTEMS

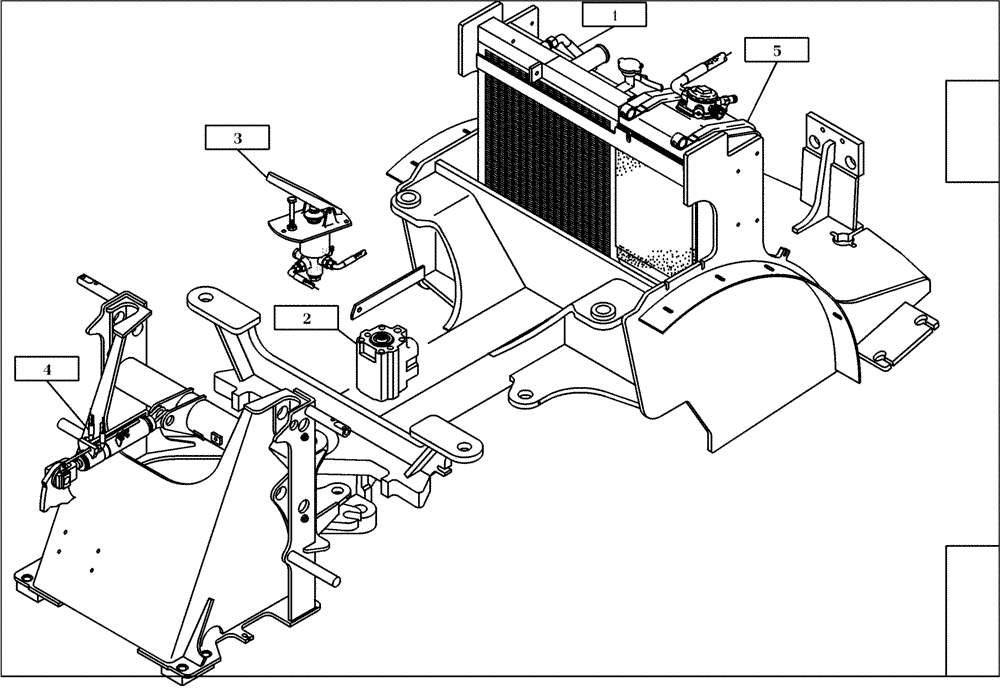

Схема запчастей Case 221D - (20.010[001]) - HYDRAULIC SYSTEM BASIC MACHINE (S/N 581101-UP) (35) - HYDRAULIC SYSTEMS
24
21
1
1
51
2
3
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

SEE FIGURE 20.100/001

1шт.

2

NS

NOT SERVICED

SEE FIGURE 20.530/001

1шт.

3

NS

NOT SERVICED

SEE FIGURE 20.540/001

1шт.

4

NS

NOT SERVICED

SEE FIGURE 20.500/001

1шт.

5

NS

NOT SERVICED

SEE FIGURE 10.100/001

1шт.
