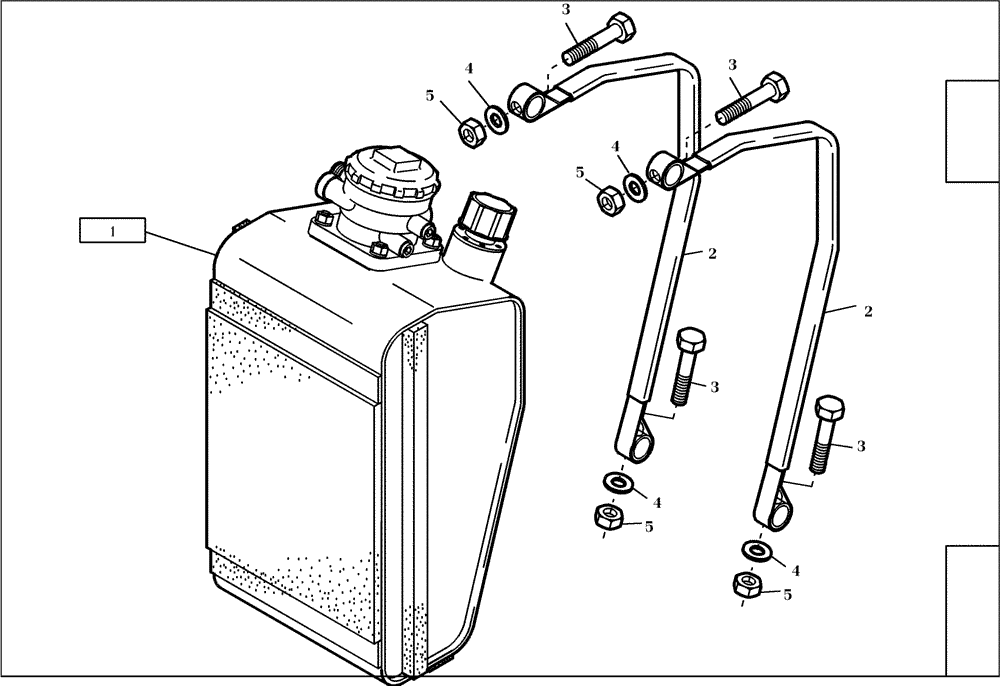

Запчасти Case 221D (10.100[001]) - HYDRAULIC OIL RES. INSTALLATION (S/N 581101-UP) (35) - HYDRAULIC SYSTEMS

1

NS

NOT SERVICED

SEE FIGURE 10.102/001

1шт.

2

421020A1

COUPLING FLANGE

2шт.

3

814-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

4шт.

4

420217A1

WASHER

8шт.

5

43362

NUT,M8 x 1.25, Cl 10

8шт.
