(02.212[001]) - REAR AXLE FAST GEAR (OPTION) (S/N 581101-UP)

Запчасти Case 221D (02.212[001]) - REAR AXLE FAST GEAR (OPTION) (S/N 581101-UP) (27) - REAR AXLE SYSTEM

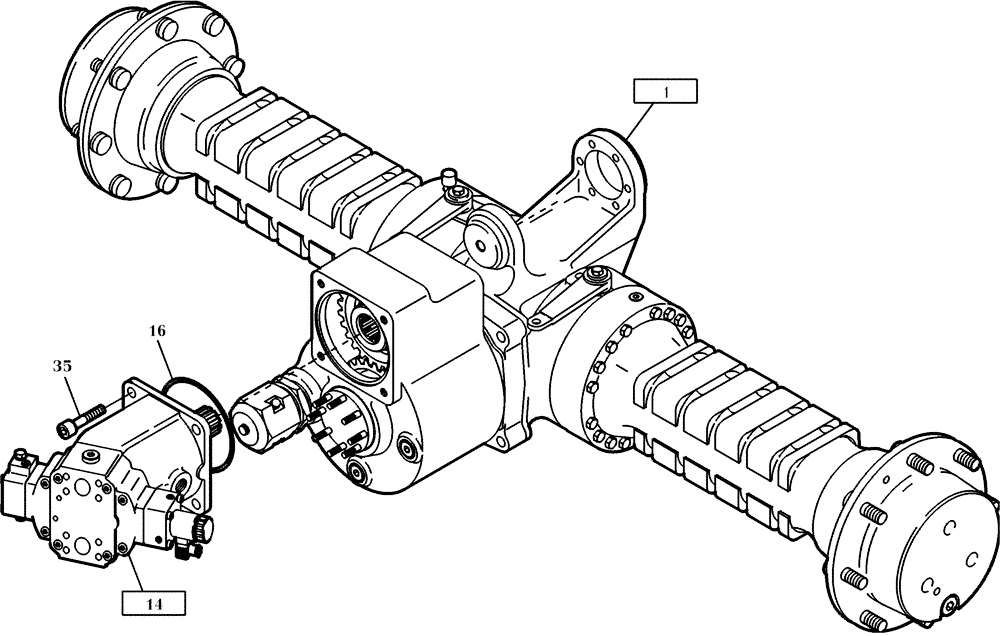

Схема запчастей Case 221D - (02.212[001]) - REAR AXLE FAST GEAR (OPTION) (S/N 581101-UP) (27) - REAR AXLE SYSTEM
1
35
14
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

SEE FIGURE 02.213/001

1шт.

14

NS

NOT SERVICED

SEE FIGURE 22.122/002

1шт.

16

420465A1

SEALING RING

1шт.

35

864-12040

HEX SOC SCREW,M12 x 40mm, Cl 8.8

1шт.
