(02.002[2988863002]) - AXLES ASSEMBLY SET SELF-LOCKING (SSD-20KM/H)

Запчасти Case 221D (02.002[2988863002]) - AXLES ASSEMBLY SET SELF-LOCKING (SSD-20KM/H) (23) - FOUR WHEEL DRIVE SYSTEM

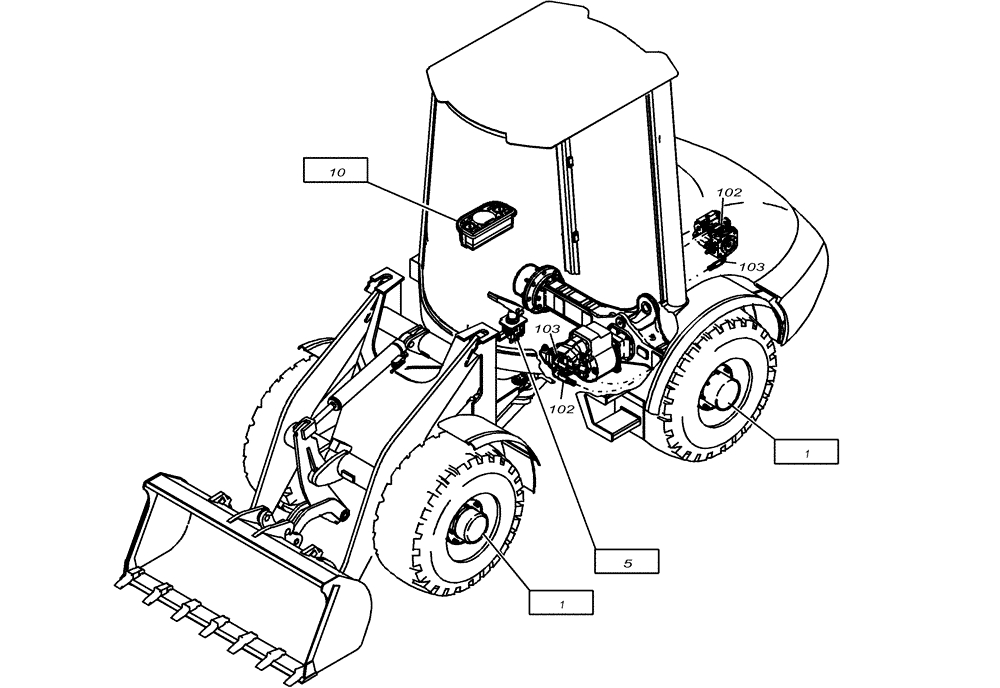

Схема запчастей Case 221D - (02.002[2988863002]) - AXLES ASSEMBLY SET SELF-LOCKING (SSD-20KM/H) (23) - FOUR WHEEL DRIVE SYSTEM
103
1
102
5
1
102
10
103
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Axles Complete Self-Locking (4552478), See Fig 02.005

1шт.

5

2813981

PRESSURE SWITCH

See Fig 23.265

1шт.

10

3004961

INSTRUMENT PANEL

See Fig 32.405

1шт.

102

4552336

HYDRAULIC HOSE,20mm ID x 1710mm L

1шт.

103

4552337

HYDRAULIC HOSE,M20 x 1710

1шт.

Выбрано товаров: 5
