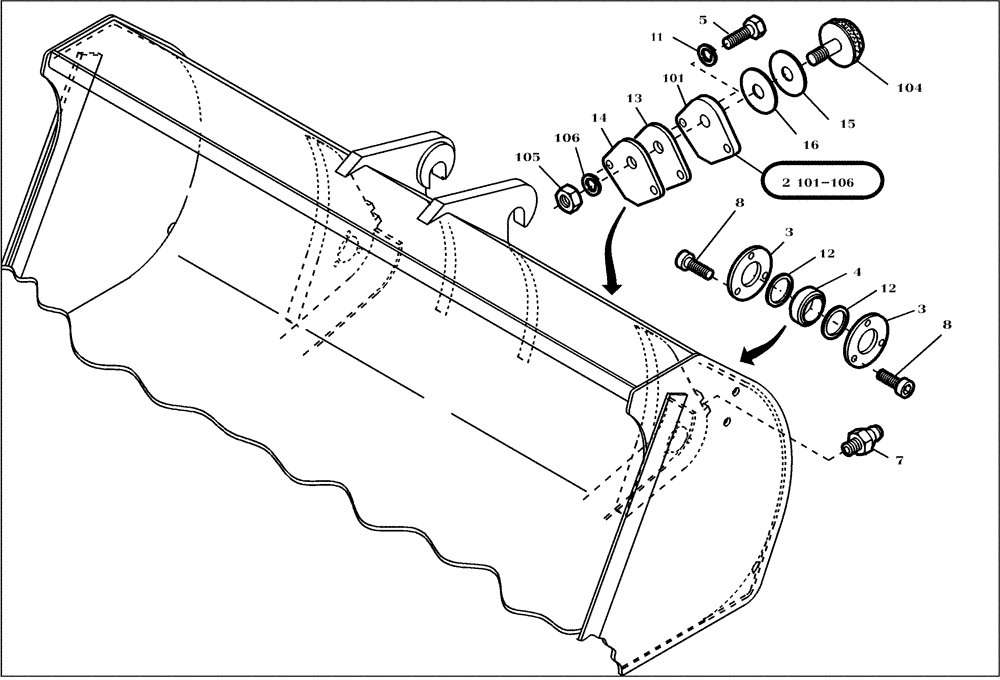

Запчасти Case 221D (64.198[2989667000]) - LOADING BUCKET ASSEMBLY PARTS 900L-2050MM M3+U (82) - FRONT LOADER & BUCKET

2

2164848

STOP

Limit, Replaces 421312A1

2шт.

3

2212197

COVER

Replaces 421845A1

4шт.

4

2973021

SPHERICAL BEARING

2шт.

5

628-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

Replaces 614-12035

4шт.

7

2973067

LUBE NIPPLE

Replaces 420268A1

2шт.

8

2186417

SCREW

M8 x 16-8.8, Replaces 421314A1

16шт.

11

2976540

LOCK WASHER

4шт.

12

2212384

WASHER

Replaces 421847A1

4шт.

13

2438384

PLATE

136 x 150mm, Replaces 421318A1

2шт.

14

2438385

PLATE

136 x 150mm, Replaces 421319A1

2шт.

15

2212786

WASHER,17mm ID x 86mm OD x 2mm Thk

Replaces 420231A1

2шт.

16

2212787

WASHER

Replaces 421320A1

2шт.

101

2164847

STOP

Replaces 423943A1

1шт.

104

1770538

BUMPER

Replaces 420260A1

1шт.

105

100020

NUT,M16 x 2.0, Cl 8

1шт.

106

725735

LOCK WASHER

Replaces 892-11016

1шт.
