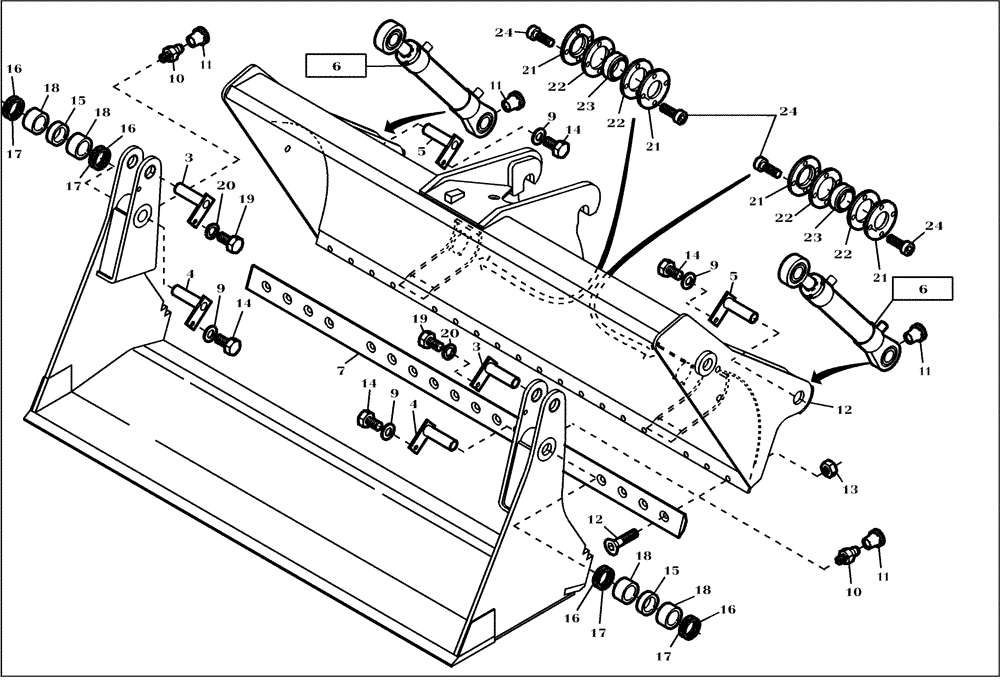

Запчасти Case 221D (64.004[2990717000]) - CLAMSHELL ASSEMBLY PARTS 850L M3+U (82) - FRONT LOADER & BUCKET

3

2182488

PIN

Replaces 421474A1

2шт.

4

1585665

PIN

Replaces 421475A1

2шт.

5

2182489

PIN

Replaces 421477A1

2шт.

6

1751468

HYDRAULIC CYLINDER,Double Acting, 40mm Rod, 210mm Stroke

See Fig 24.062

2шт.

7

2212388

CUTTING EDGE

Replaces 421978A1

1шт.

9

530811

WASHER

Replaces 420197A1

4шт.

10

84089943

LUBE NIPPLE

10 x 1-5.8, Replaces 933781R1

2шт.

11

118981

CAP

Replaces 420886A1

6шт.

12

2978099

SCREW

M10 x 40-8.8-A3B

18шт.

13

190003888452

LOCK NUT,M10, Class 8

M10, Replaces 832-10410

18шт.

14

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

4шт.

15

1180589

SLEEVE

Replaces 421498A1

2шт.

16

1180063

RING

Replaces 421499A1

4шт.

17

1175728

KIT

Replaces 420924A1

4шт.

18

33454

BUSHING

40/50 x 36, Replaces 421500A1

4шт.

19

43151

BOLT,Hex, M12 x 20mm, Cl 8.8, Full Thd

Replaces 614-12020

2шт.

20

2976540

LOCK WASHER

2шт.

21

2212197

COVER

Replaces 421845A1

4шт.

22

2212384

WASHER

Replaces 421847A1

4шт.

23

2973021

SPHERICAL BEARING

50/ 75 x 35/ 28-2RS ELG

2шт.

24

2186417

SCREW

M8 x 16-8.8-A2B, Replaces 421314A1

16шт.
