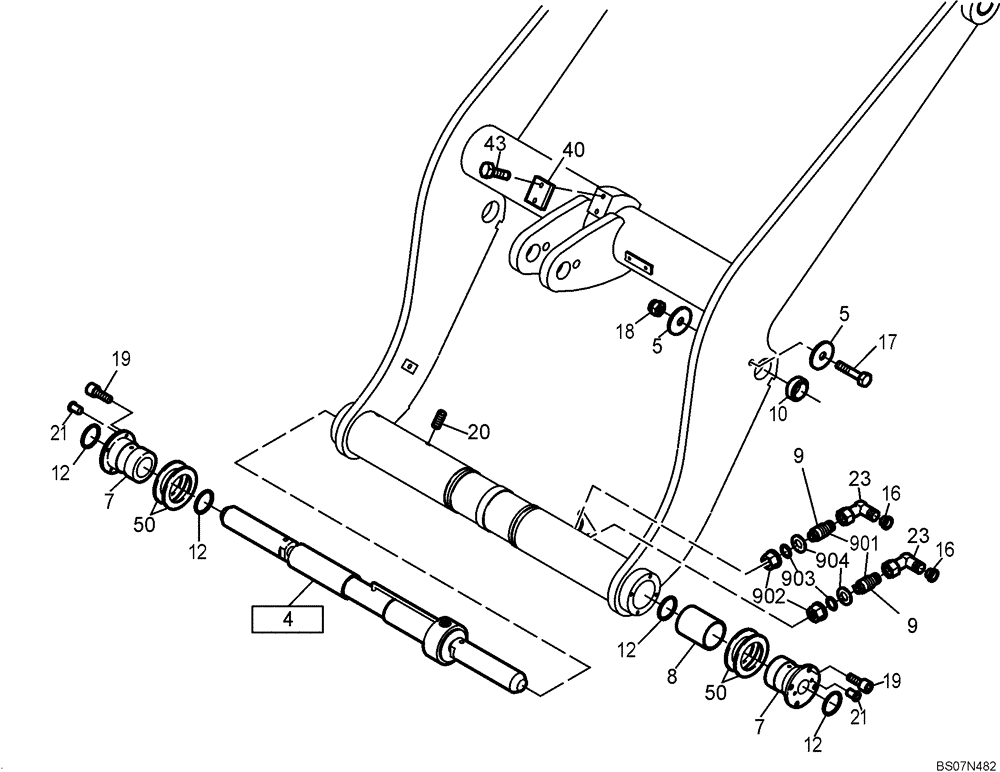

Запчасти Case 221D (60.502[2990506000]) - LOADER ARM (82) - FRONT LOADER & BUCKET

4

Hydraulic System Quick-Hitch (4552511) See Fig 20.561

1шт.

5

596797

WASHER

Replaces 422593A1

4шт.

7

2212184

HUB

Replaces 422420A1

2шт.

8

2212292

SLEEVE

Replaces 422421A1

1шт.

9

4550941

HYD CONNECTOR

Replaces 422420A1

2шт.

10

718369

SPHERICAL BEARING,45mm ID x 68mm OD x 40mm W

Replaces 421614A1

2шт.

12

8402470

O-RING,50mm ID x 5mm Width

Replaces 422423A1

4шт.

16

V2537425

PLUG

Replaces 420888A1

2шт.

17

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

Replaces 814-10050

2шт.

18

338620A1

PULLEY

M10-8, Replaces 832-10410

2шт.

19

2979617

SCREW

M8 x 20-8.8-A2B

8шт.

20

726138

SET SCREW

M08 x 40, Replaces 420891A1

3шт.

21

2975111

PLUG

4шт.

23

1636005

ELBOW

Replaces 420894A1

2шт.

40

2405213

PLATE

20 x 80 x 110, Replaces 422595A1

1шт.

43

86509867

BOLT,Hex Flg, M16 x 40mm

2шт.

50

2813186

WASHER

102.2 x 139 x 1

4шт.

901

4550941

HYD CONNECTOR

1шт.

902

4550943

NUT

1шт.

903

1413997

SEALING RING

SEALRING

1шт.

904

2212052

SEALING RING

SEALRING

1шт.
