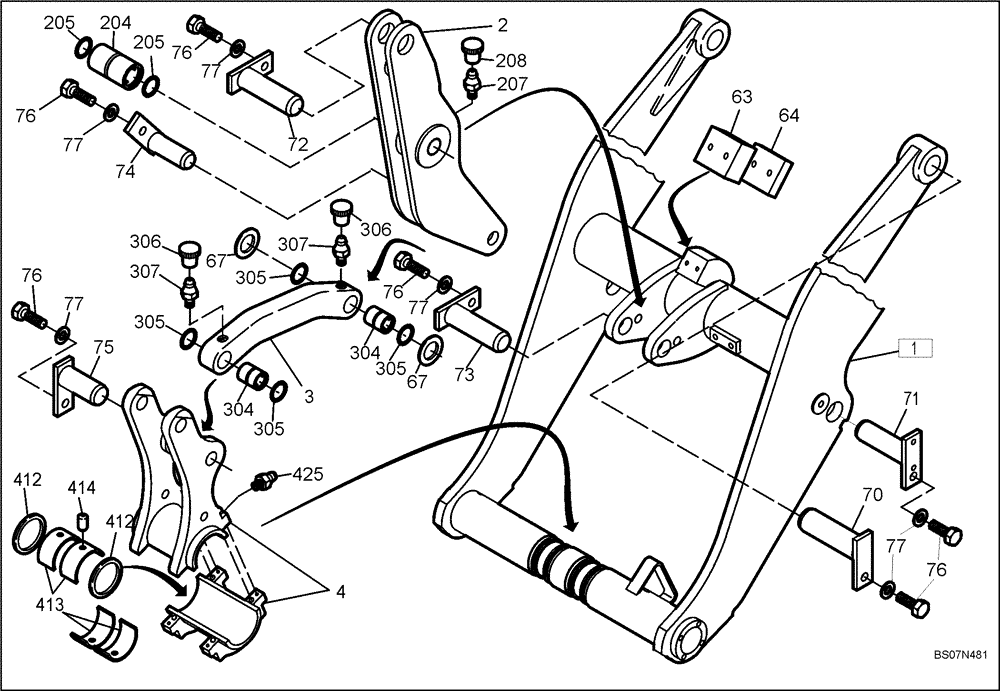

Запчасти Case 221D (60.501[2941815001]) - LOADER ARM MOUNTING PARTS (82) - FRONT LOADER & BUCKET

1

Loader Arm (4550621) See Fig 60.502

1шт.

2

2405970

PIVOTING ARM

LINKAGE, Incl. 204-208, Replaces 422575A1

1шт.

3

2405775

CRANKED LINK

DRAWBAR 55 x 160 x 665 Incl. 304-307, Replaces 422576A1

1шт.

4

2405727

PIVOTING ARM

Incl. 412-4142 425, See Fig 60.504, Replaces 422579A1

1шт.

63

2405212

PLATE

Replaces 422581A1

2шт.

64

2405211

PLATE

Replaces 422582A1

2шт.

67

1710161

WASHER

Replaces 422583A1

2шт.

70

1710559

PIN,55mm OD x 197mm L

Replaces 422584A1

2шт.

71

1710230

PIN

Replaces 422586A1

2шт.

72

1585825

PIN,45mm OD x 117mm L

Replaces 422587A1

1шт.

73

1710559

PIN,55mm OD x 197mm L

Replaces 422585A1

1шт.

74

1180513

PIN,40mm OD x 114mm L

Replaces 422588A1

1шт.

75

2182246

PIN

Replaces 420919A1

1шт.

76

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

8шт.

77

530811

WASHER

Replaces 420197A1

8шт.

204

1710144

BUSHING,55mm ID x 67mm OD x 125mm L

Replaces 422591A1

1шт.

205

1175729

SET OF WASHERS

Replaces 422592A1

2шт.

207

84089943

LUBE NIPPLE

M10 x 1-5.8, Replaces 933781R1

1шт.

208

118981

CAP

Replaces 420886A1

1шт.

304

1710155

BUSHING

Replaces 422578A1

2шт.

305

1175728

KIT

Replaces 420924A1

4шт.

306

118981

CAP

Replaces 420886A1

2шт.

307

2973067

LUBE NIPPLE

Replaces 420268A1

2шт.

412

2928837

RING

Replaces 422431A1

2шт.

413

4552165

BEARING HALF

Replaces 422432A1

12шт.

414

2426918

DOWEL

GROOVED, Replaces 420909A1

12шт.

425

2973067

LUBE NIPPLE

Replaces 420268A1

4шт.
