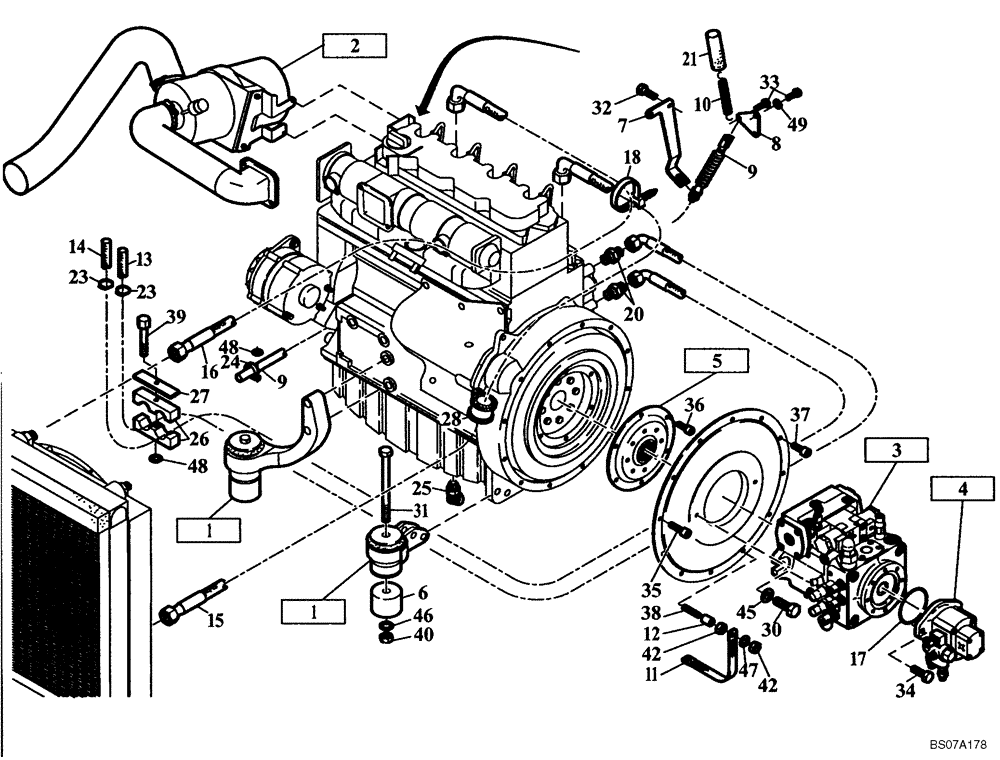

Запчасти Case 221D (13.011[2987277002]) - MOTOR MOUNTING PARTS STANDARD (10) - ENGINE

1

Motor (4552078) See Fig 95.000

1шт.

2

Intake System Installation (4552076) See Fig 13.230

1шт.

3

Axle Piston Pump Installation (4552127) See Fig 22.060

1шт.

4

Gear Pump Installation (4552317) See Fig 22.050

1шт.

5

Coupling/Clutch (2813822) See Fig 17.102

1шт.

6

2813830

SPACER

13 x 60 x 40 mm

4шт.

7

4552152

RETAINER

1шт.

8

4552161

ADJUSTER

1шт.

9

2929759

CABLE

Control

1шт.

10

9844

SPRING

1шт.

11

4159846

GROUND CABLE

1шт.

12

501046

BUSHING

1шт.

13

4552510

HYDRAULIC HOSE,M16 x 3150

1шт.

14

4552510

HYDRAULIC HOSE,M16 x 3150

1шт.

15

2813841

HYDRAULIC HOSE,20mm ID x 1200mm L

1шт.

16

2813841

HYDRAULIC HOSE,20mm ID x 1200mm L

1шт.

17

420729A1

O-RING

1шт.

18

8464961

CABLE TIE,M7.5 x 360

CABLE STRAP

1шт.

20

2930000

HYD CONNECTOR

2шт.

21

420488A1

HOSE

0.11 Meter

1шт.

23

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

24

925564

HOSE CLAMP

1шт.

25

1758452

DRAIN PLUG

M18 x 1.5

1шт.

26

1758434

CLAMP

1шт.

28

8403477

PIPE CLAMP

1шт.

30

374835

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

31

788428

BOLT,Hex, M12 x 180mm, Cl 8.8

4шт.

32

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

33

421109A1

BOLT

M6 x 12, 8.8

2шт.

34

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

35

864-10030

HEX SOC SCREW,M10 x 30mm, Cl 8.8

1шт.

36

2977405

SCREW

M8 x 20, 8.8

6шт.

37

422362A1

SCREW

M10 x 25, 8.8

9шт.

38

1768777

STUD

M10 x 65, 8.8

1шт.

39

420991A1

SCREW

M8 x 45, 8.8

1шт.

40

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

42

100016

NUT,M10 x 1.5, Cl 8

3шт.

45

1836970

WASHER

2шт.

46

2975164

WASHER

4шт.

47

2981701

WASHER,10.5mm ID x 20mm OD x 2mm Thk

3шт.

48

2975165

WASHER

M8

2шт.

49

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

1шт.

50

80058046

YOKE

Protective (Not shown)

1шт.
