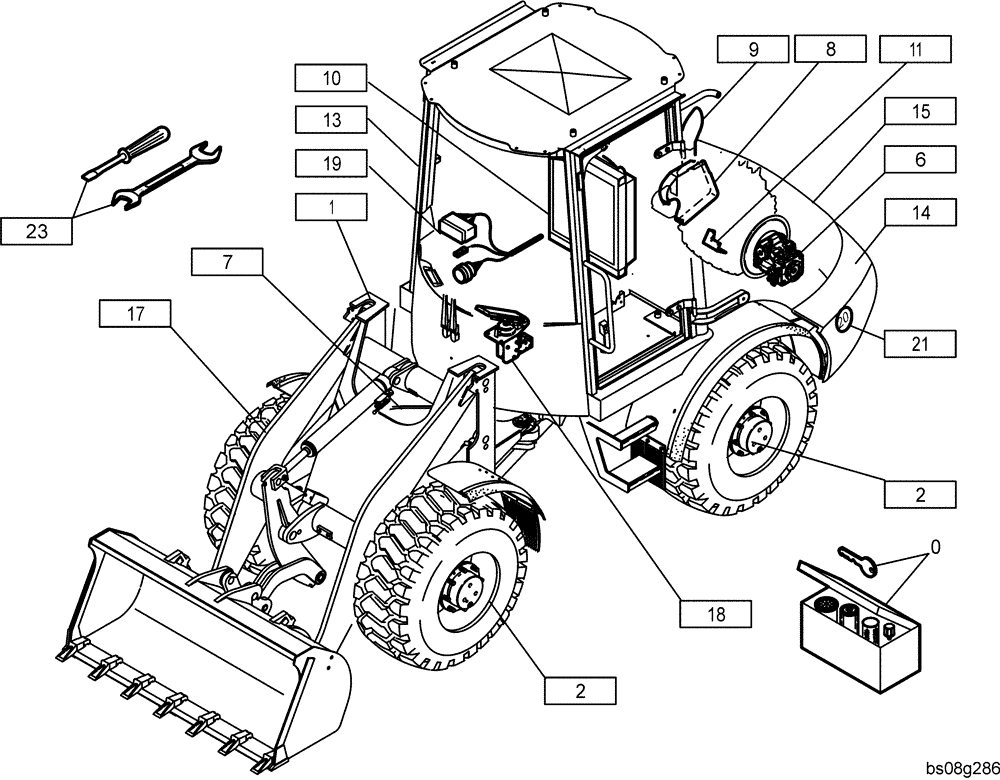

Запчасти Case 221D (00.100[2988593000]) - BASIC MACHINE (00) - GENERAL & PICTORIAL INDEX

0

Lock Set (2990466), See Fig 35.040

1шт.

0

Maintenance Material, See Fig 92.020

1шт.

1

Frame Basic Machine with Mounting Parts (4552099), See Fig 01.100

1шт.

2

Axles Assy Set Standard (4552477), See Fig 02.003

1шт.

6

Motor Mounting Parts Standard (4552071), See Fig 13.011

1шт.

7

Fuel System (4552062), See Fig 13.300

1шт.

8

Cover 'V'-Belt (4552164), See Fig 36.560

1шт.

9

Exhaust System Installation Material (4552063), See Fig 13.220

1шт.

10

Cooling System Engine Oil Installation Material (4552057), See Fig 15.120

1шт.

11

Motor (4552071), See Fig 13.000

1шт.

14

Ballast Installation Material (4573411), See Fig 12.010

1шт.

15

Engine Hood Installation Material (4552124), See Fig 36.020

1шт.

17

Mast Installation Material (4550630), See Fig 60.500

1шт.

18

Hydraulic System Basic Machine (4552031), See Fig 20.010

1шт.

19

Electrical System Basic Machine Complete (2813927), See Fig 32.010

1шт.

21

Plates Complete (4552887), See Fig 91.000

1шт.

23

Tool Set (4552065), See Fig 92.010

1шт.
