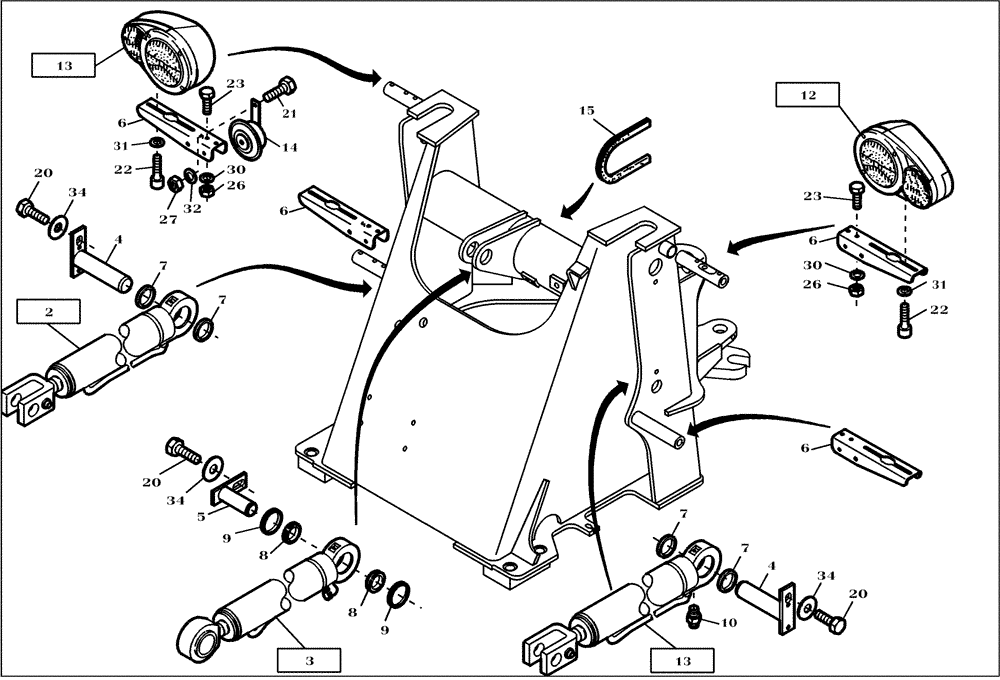

Запчасти Case 221D (01.400[2988596000]) - FRONT FRAME (39) - FRAMES AND BALLASTING

1

4552101

Front Frame Incl 2-34

1шт.

2

4550284

LIFT CYLINDER

See Fig 24.072

2шт.

3

4550288

HYDRAULIC CYLINDER

Tip, See Fig 24.082

1шт.

4

4550292

PIN

Replaces 421633A1

2шт.

5

4550296

PIN

Replaces 421634A1

1шт.

6

2813704

BRACKET

Replaces 424281A1

4шт.

7

1710122

SEALING RING

SEALRING Replaces 421635A1

4шт.

8

4515927

RING

Replaces 421637A1

4шт.

9

4149101

SCRAPER RING

M58/80 x 15, Replaces 421638A1

4шт.

10

924503

HYD CONNECTOR

Replaces 422797A1

4шт.

12

2929455

HEADLAMP

Front Mounting Parts, LH, See Fig 32.201

1шт.

13

2929456

HEADLAMP,12V, 21W, Amber/Red

Front Mounting Parts, RH, See Fig 32.202

1шт.

14

216547

HORN

Replaces 424282A1

1шт.

15

82848715

GUARD

0.85 Meter, Replaces 420196A1

1шт.

16

2978564

SEALING RING

SEALRING

4шт.

20

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

3шт.

21

56656

BOLT,Hex, M10 x 20mm, Cl 8.8

Replaces 614-10020

1шт.

22

CAS2168745

SCREW,M8 x 12mm, Cl 8.8

Hex, M8 x 12, 8.8, Replaces 424283A1

4шт.

23

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

Replaces 614-8020

8шт.

26

43362

NUT,M8 x 1.25, Cl 10

8шт.

27

100016

NUT,M10 x 1.5, Cl 8

1шт.

30

2981701

WASHER,10.5mm ID x 20mm OD x 2mm Thk

1шт.

31

62543

WASHER

Replaces 420222A1

4шт.

34

530811

WASHER

Replaces 420197A1

3шт.
