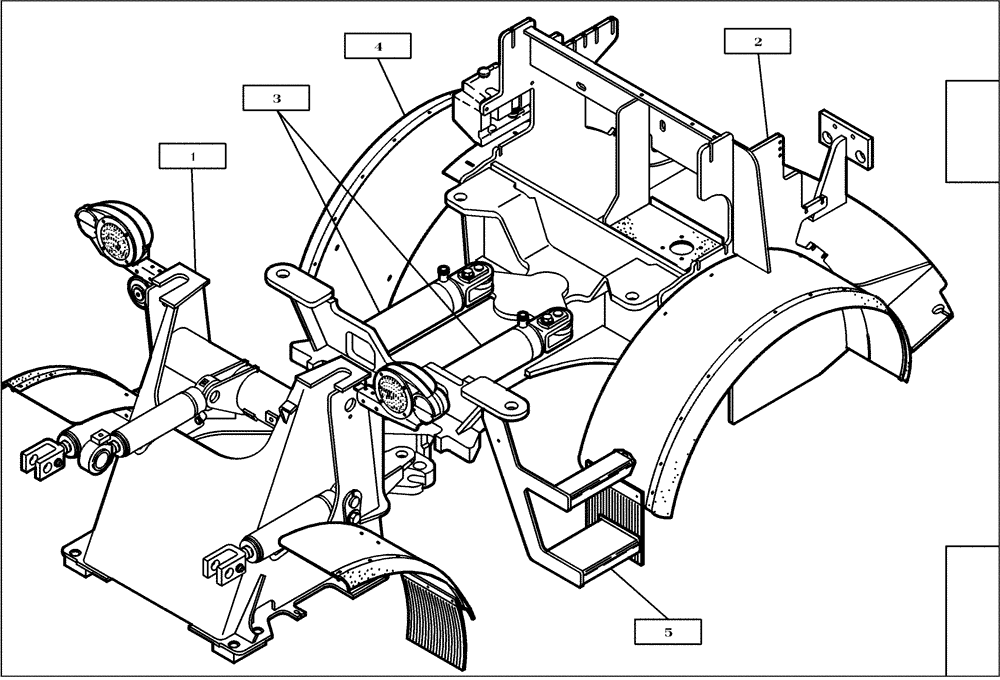

Запчасти Case 221D (01.100[2988520001]) - FRAME BASIC MACHINE WITH MOUNT. PARTS (39) - FRAMES AND BALLASTING
№
Артикул
Название
Примечание
Количество
1
Front Frame with Mounting Parts (4552279), See Fig 01.400
1шт.
2
Rear Frame with Mounting Parts (4552102), See Fig 01.500
1шт.
3
Articulated Joint Parts (4552175), See Fig 01.450
1шт.
4
Wheel Cover Installation (4552237), See Fig 01.680
1шт.
5
Steps Installation (4554403), See Fig 01.810
1шт.
Выбрано товаров: 5
