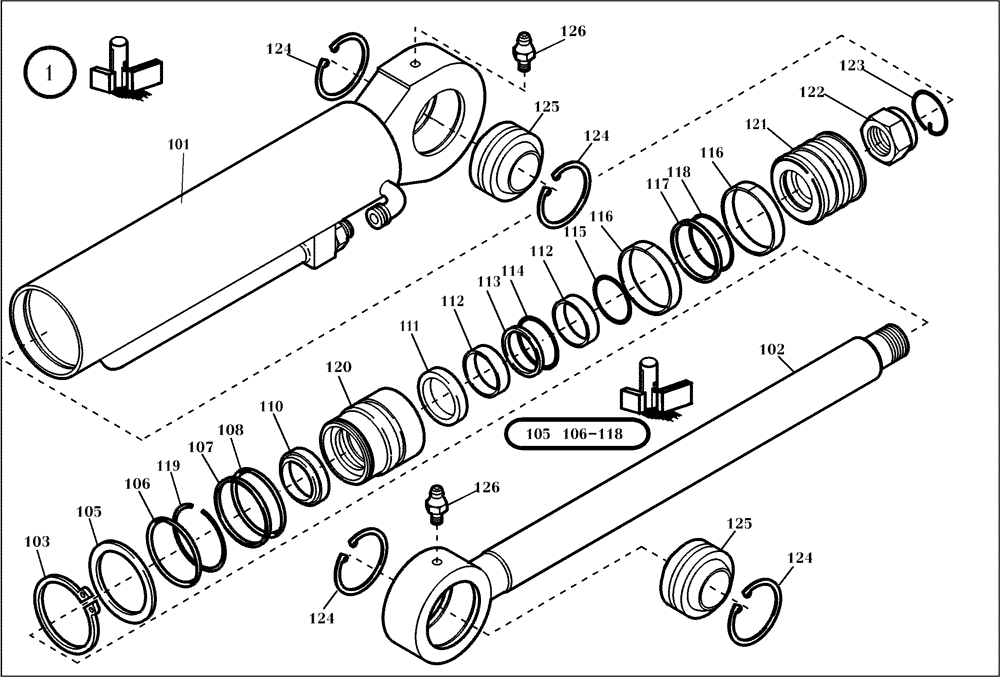

Запчасти Case 221D (24.082[2940454000]) - TIP CYLINDER (35) - HYDRAULIC SYSTEMS

4550288

HYDRAULIC CYLINDER

TIP, Replaces 421616A1

1шт.

1

4518661

HYDRAULIC CYLINDER

1шт.

101

8487915

HYD CYL SLEEVE

Replaces 421617A1

1шт.

102

8486098

PISTON ROD

Replaces 421618A1

1шт.

103

8439419

SNAP RING

Replaces 421619A1

1шт.

104

8401857

SHIM

Supporting Ring, 20 x 28 x 1 (Din 988) (per EC); Replaces 421620A1

1шт.

105

1462430

WRAPPER

Replaces 421621A1

1шт.

106

974817

SEALING RING

SEALRING M85.32 x 3.53-NB 80, Replaces 421622A1

1шт.

107

8486096

RING

Replaces 421627A1

1шт.

108

12155

SEALING RING,100mm ID x 5mm Width

M100 x 5, NB 70, Replaces 421626A1

1шт.

110

8402972

WRAPPER

Replaces 420160A1

1шт.

111

8486097

RING

Replaces 420157A1

1шт.

112

8402800

SEALING RING

SEALRING Replaces 420155A1

2шт.

113

4149144

SEAL,45mm ID x 52.06mm OD x 3.53mm Thk

Replaces 420156A1

1шт.

114

750468

O-RING

Replaces 421628A1

1шт.

115

4149235

SEALING RING,45mm ID x 3mm Width

M45.0 x 3, NB 85 Replaces 420149A1

1шт.

116

Z282186

WEAR RING

Replaces 421623A1

2шт.

117

2981509

BACK-UP RING

1шт.

118

8486094

O-RING

Replaces 421624A1

1шт.

119

1462425

SNAP RING

Replaces 421629A1

1шт.

120

1462431

GLAND

Replaces 421630A1

1шт.

121

1462427

PISTON

Replaces 421631A1

1шт.

122

1462424

NUT

Replaces 421632A1

1шт.

123

1462426

SNAP RING

Replaces 420189A1

1шт.

124

11061376

SNAP RING,M68, Int

Replaces 800-2168

4шт.

125

718369

SPHERICAL BEARING,45mm ID x 68mm OD x 40mm W

Replaces 421614A1

2шт.

126

2973067

LUBE NIPPLE

8 x 1-5.8-A2F

1шт.
