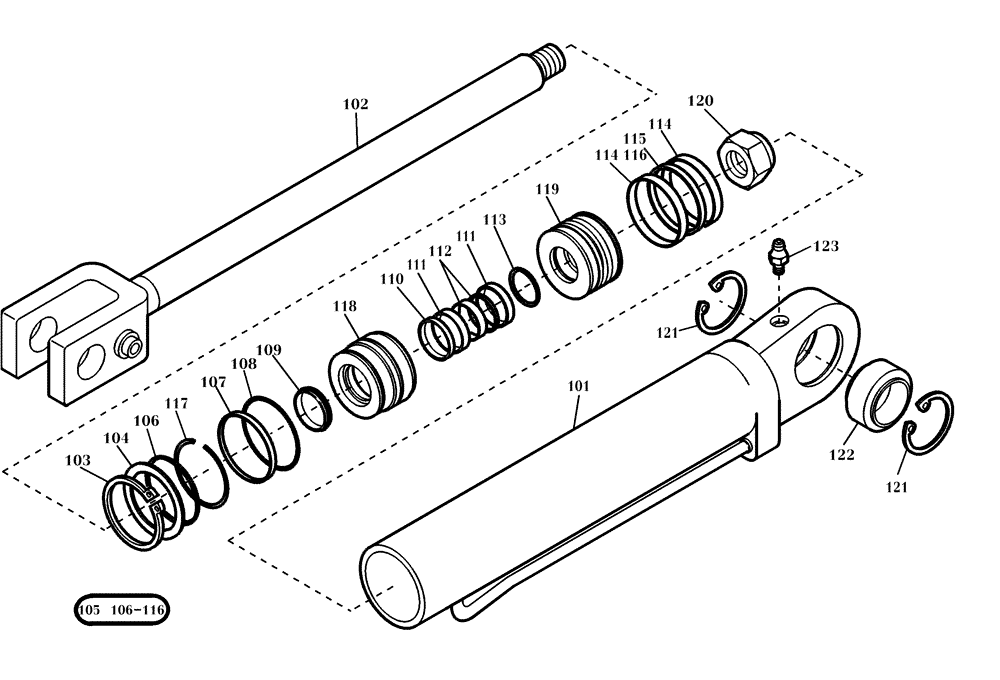

Запчасти Case 221D (24.072[2940453000]) - LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

4550284

LIFT CYLINDER

Assembly, Replaces 421611A1

1шт.

1

4518788

LIFT CYLINDER,45mm Rod, 400mm Stroke

1шт.

101

8487914

BARREL

Replaces 421612A1

1шт.

102

8486101

PISTON ROD

Replaces 421613A1

1шт.

103

8439407

SNAP RING

Replaces 420145A1

1шт.

104

146862

WASHER

70 x 90mm, Replaces 420146A1

1шт.

105

8486102

GASKET

Replaces 420147A1

1шт.

106

35046

SUPPORT

Replaces 420148A1

1шт.

107

8486057

RING

Replaces 420153A1

1шт.

108

8486058

O-RING

Replaces 420154A1

1шт.

109

8402972

WRAPPER

Replaces 420160A1

1шт.

110

8486097

RING

Replaces 420157A1

1шт.

111

8402800

SEALING RING

SEALRING Replaces 420155A1

2шт.

112

4149144

SEAL,45mm ID x 52.06mm OD x 3.53mm Thk

Replaces 420156A1

1шт.

113

4149235

SEALING RING,45mm ID x 3mm Width

M45.00 x 3, NB 85, Replaces 420149A1

1шт.

114

1547667

RING

Replaces 420150A1

2шт.

115

1547668

SEAL

SEALRING Replaces 420152A1

1шт.

116

1983862

O-RING

Replaces 420151A1

1шт.

117

8486052

SNAP RING

Replaces 420161A1

1шт.

118

8486100

GLAND

Replaces 420162A1

1шт.

119

8486099

PISTON

Replaces 420163A1

1шт.

120

8401606

NUT

M24-10 Replaces 420159A1

1шт.

121

11061376

SNAP RING,M68, Int

Replaces 800-2168

1шт.

122

718369

SPHERICAL BEARING,45mm ID x 68mm OD x 40mm W

Replaces 421614A1

1шт.

123

2973067

LUBE NIPPLE

M8 x 1-5.8

1шт.
