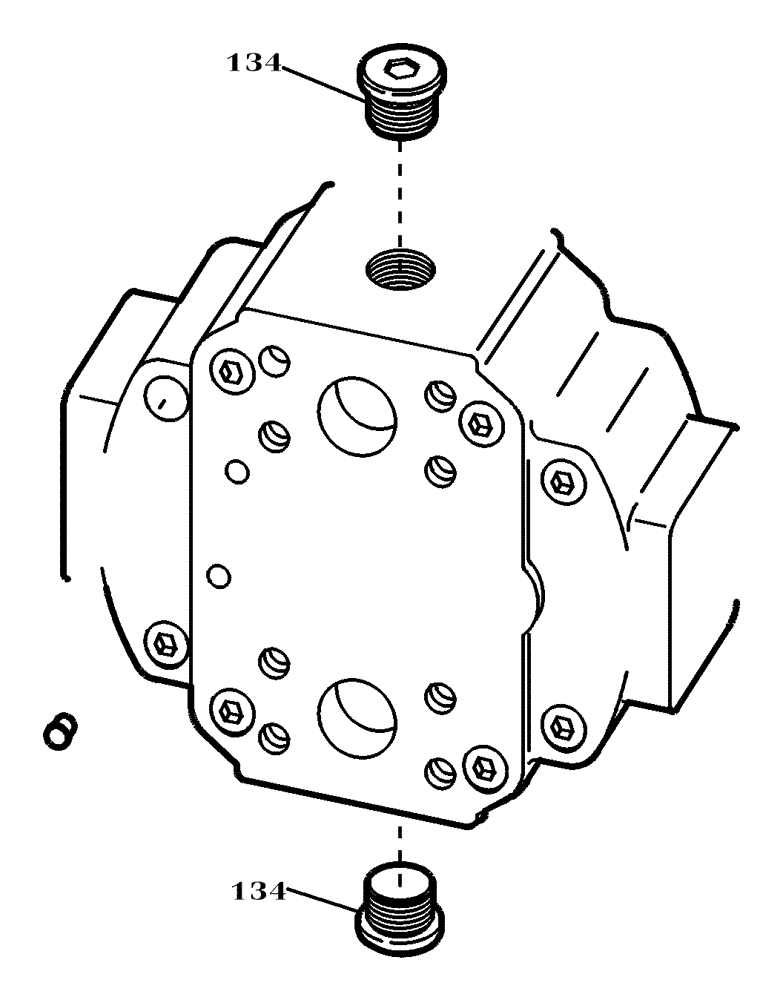

Запчасти Case 221D (22.128[2988401000]) - REGULATION HYDRAULIC MOTOR CONTROL UNIT FOR HIGH SPEED VERSION (35) - HYDRAULIC SYSTEMS

101

Regulation Hydraulic Motor Control Unit (2988402) See Fig 22.129

1шт.

102

Regulation Hydraulic Motor (Cover) (2988377) See Fig 22.131

1шт.

104

8487982

ADJUSTER

Regulation, Replaces 420415A1

1шт.

105

1436839

PIVOT

Replaces 420416A1

1шт.

107

8487983

PISTON

Replaces 420417A1

1шт.

108

8487984

SET SCREW

Replaces 420418A1

1шт.

111

1436841

PIN

Replaces 420420A1

2шт.

113

1432854

BUSHING

Replaces 420421A1

2шт.

115

145922

SCREW,Cyl Hd, M12 x 65mm, Cl 8.8

Replaces 420422A1

8шт.

119

1461503

O-RING

Replaces 420424A1

2шт.

120

1471547

O-RING

Replaces 420426A1

6шт.

121

1459934

O-RING

Replaces 420427A1

2шт.

123

61510

SCREW

M12 x 25-8.8, Replaces 420429A1

1шт.

124

87441447

RING

M4 x 8-4.8, Replaces 420430A1

3шт.

126

8603798

PIN

M6 x 20, Replaces 932659R1

2шт.

128

8486166

PLUG

Replaces 420431A1

1шт.

134

G2537412

PLUG

Replaces 420432A1

2шт.
