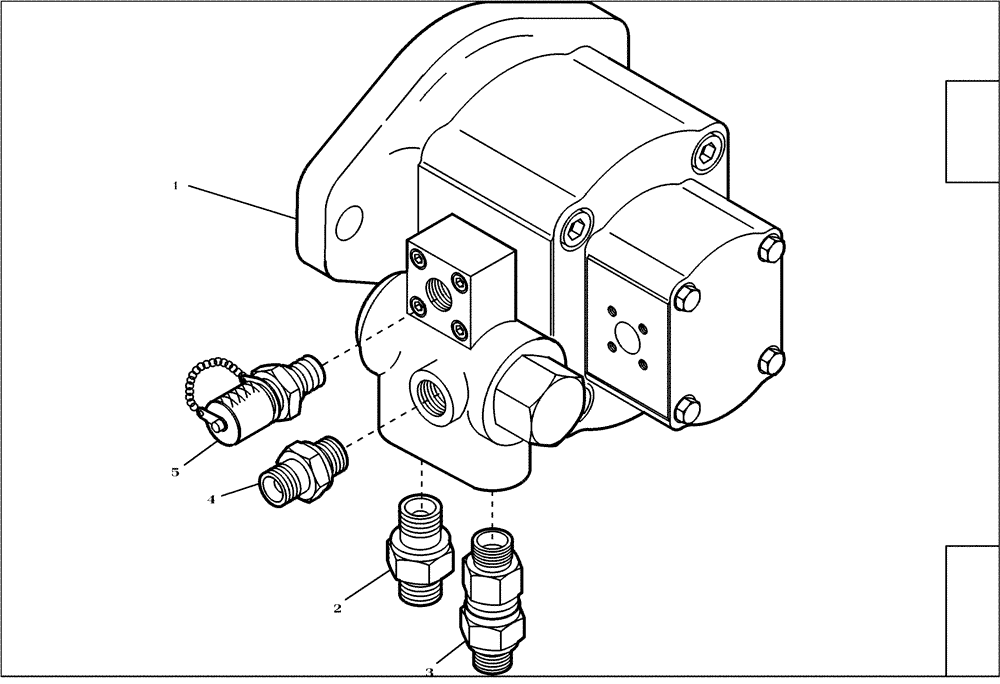

Запчасти Case 221D (22.050[2987624000]) - GEAR PUMP & HYDRAULIC CONNECTORS (35) - HYDRAULIC SYSTEMS

1

4532253

HYDRAULIC PUMP

See Fig 22.051

1шт.

2

1709806

CHECK VALVE

Replaces 420721A1

1шт.

3

1148041

HYD CONNECTOR

Replaces 420477A1

1шт.

4

1338218

HYD CONNECTOR

Replaces 420723A1

1шт.

5

2739719

COUPLING

M12 x 1.5, Replaces 420711A1

1шт.

6

1960191

FITTING

Not shown

1шт.
