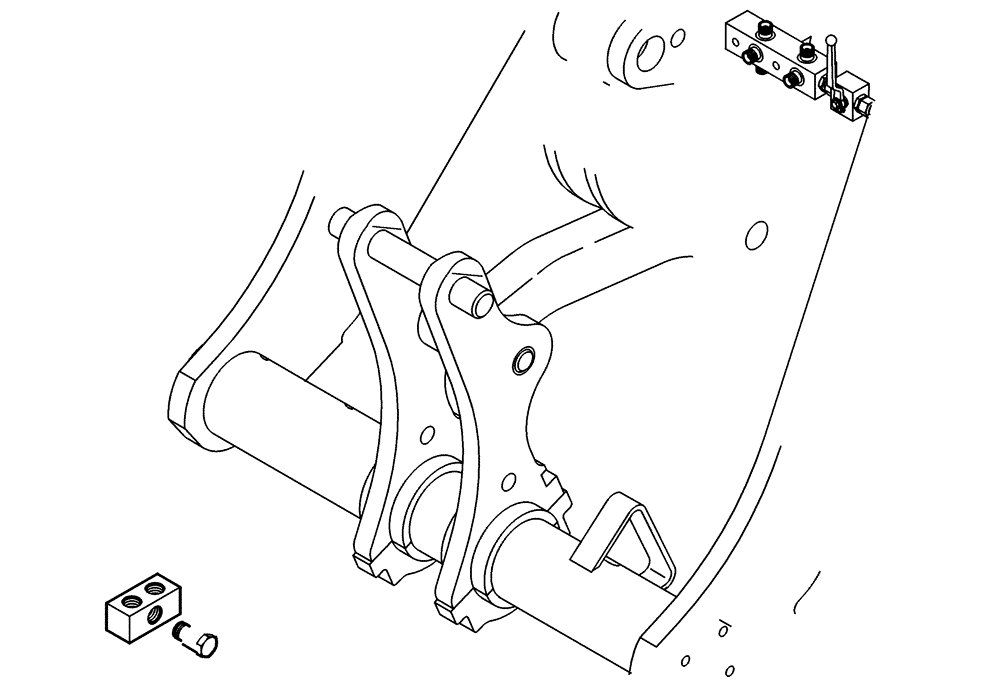

Запчасти Case 221D (20.570[2716843001]) - HYDRAULIC SYSTEM 3RD FUNCTION (35) - HYDRAULIC SYSTEMS

1

2212398

CONNECTING BLOCK

1шт.

5

2292401

HYDRAULIC HOSE

12 x 975, Replaces 421829A1

1шт.

6

2292402

HYDRAULIC HOSE

12 x 950 , Replaces 421828A1

1шт.

13

84062222

BOLT,Hex, M10 x 45mm, Cl 8.8, Full Thd

M10 x 45, Replaces 814-10045

2шт.

101

2212187

HYDRAULIC VALVE

Replaces 421826A1

1шт.

104

2739649

90 ELBOW

Replaces 421284A1

2шт.

106

2268322

COUPLING

Replaces 421287A1

1шт.

107

2268324

COUPLING

Replaces 421289A1

1шт.

108

2268321

COUPLING

Replaces 421288A1

1шт.

109

2268323

DUST CAP

Replaces 421290A1

1шт.

110

726978

PLUG

Replaces 423716A1

2шт.

112

104962

O-RING

Replaces 421827A1

2шт.
