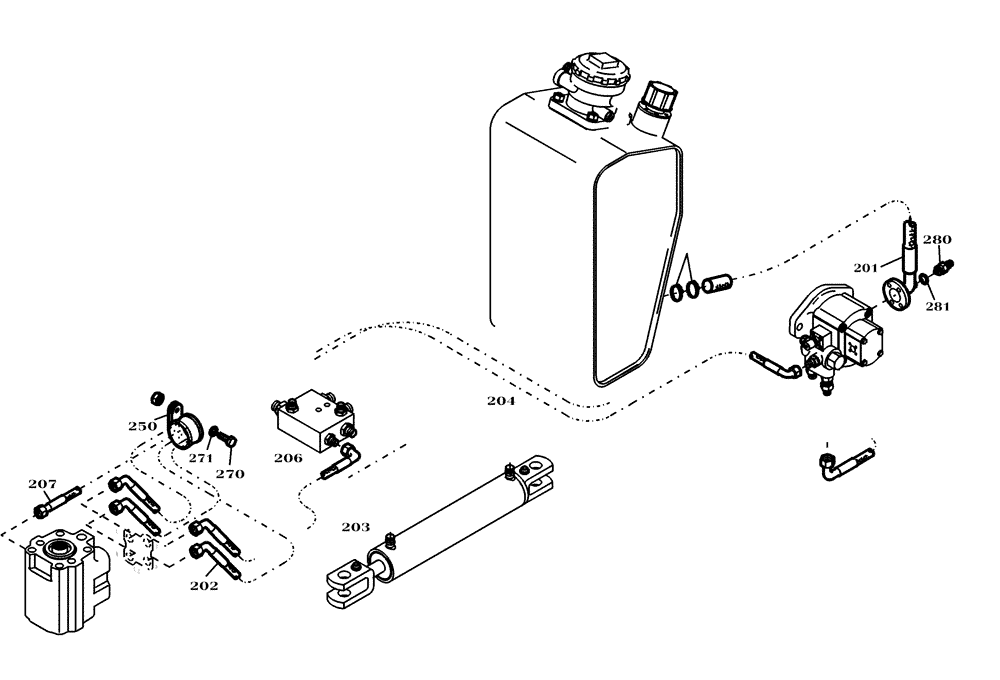

Запчасти Case 221D (20.530[2988107001]) - HYDRAULIC SYSTEM STEERING (35) - HYDRAULIC SYSTEMS

201

2813911

HYDRAULIC HOSE

32 x 975

1шт.

202

4552902

HYDRAULIC HOSE

10/12 x 2850

1шт.

203

4552340

HYDRAULIC HOSE

12 x 770

1шт.

204

4552340

HYDRAULIC HOSE

12 x 770

1шт.

206

2813913

HYDRAULIC HOSE

12 x 515

1шт.

207

2813914

HYDRAULIC HOSE

06 x 2440

1шт.

230

2900953

ACCUMULATOR,0.16L

1шт.

231

7723965

HYD CONNECTOR

Replaces 421409A1

1шт.

232

1991910

TEE

Replaces 422532A1

1шт.

250

8403429

CLAMP

Replaces 422182A1

1шт.

251

2979287

HOSE CLAMP

2шт.

270

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

Replaces 614-10020

1шт.

271

2981701

WASHER,10.5mm ID x 20mm OD x 2mm Thk

2шт.

273

100016

NUT,M10 x 1.5, Cl 8

1шт.

280

425841

TEMPERATURE SWITCH

Temperature Select, Replaces 422781A1

1шт.

281

54837

SEALING RING

SEALRING A14 x 18-CU, Replaces 422782A1

1шт.
