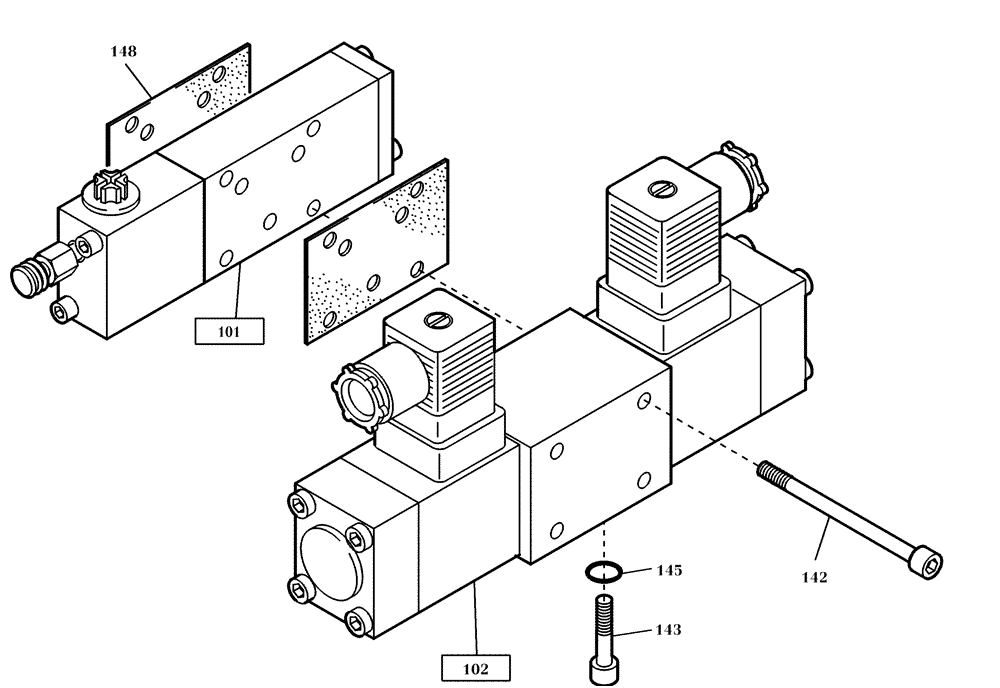

Запчасти Case 21D (23.010[001]) - HYDRAULIC SYSTEM VALVES INCH VALVE (S/N 561101-UP) No Description

1

420658A1

VALVE

1шт.

101

NS

NOT SERVICED

SEE FIGURE 23.010/004

1шт.

102

NS

NOT SERVICED

SEE FIGURE 23.232/002

1шт.

142

420684A1

SCREW

4шт.

143

420685A1

SCREW

1шт.

145

420686A1

O-RING

1шт.

148

420675A1

GASKET

1шт.
