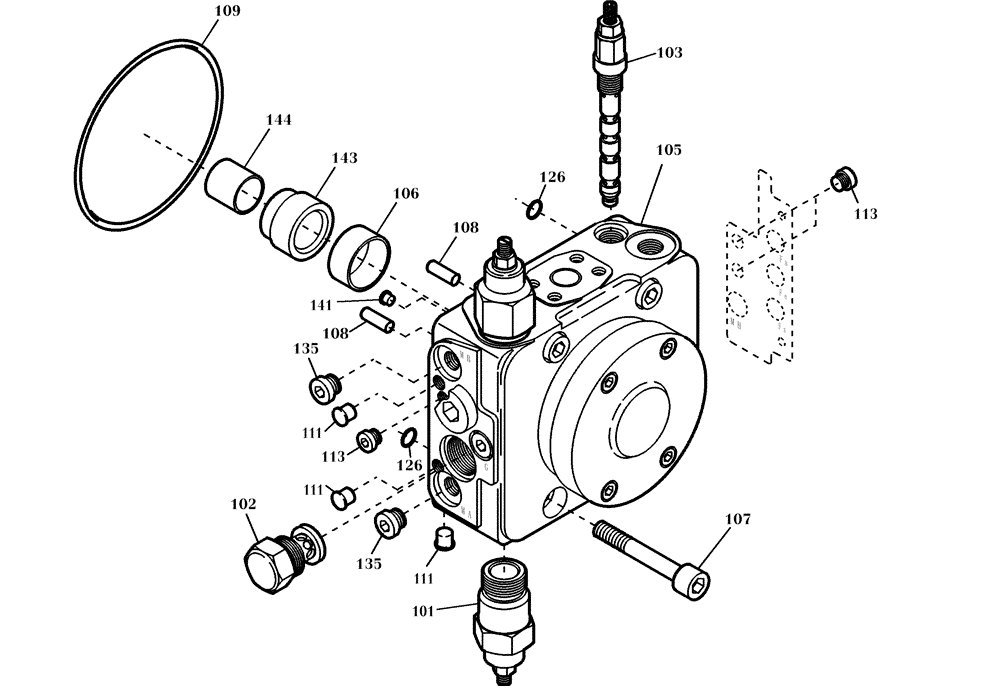

Запчасти Case 21D (22.430[001]) - PUMP ADJUSTING ASS PUMP INSTALLATION (S/N 561101-UP) No Description

1

420606A1

DISTRIBUTOR

1шт.

101

420607A1

PIANO WIRE

SEE FIGURE 23.032/002

2шт.

102

420621A1

PRESSURE LIMITER

SEE FIGURE 23.032/003

1шт.

103

420630A1

CONTROL VALVE

SEE FIGURE 23.192/001

1шт.

105

420641A1

DISTRIBUTOR

1шт.

106

420642A1

BUSHING

1шт.

107

420643A1

SCREW

4шт.

108

420644A1

PIN

2шт.

109

420645A1

O-RING

1шт.

111

420431A1

PLUG

3шт.

113

420646A1

PLUG

3шт.

126

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

135

420647A1

PLUG

2шт.

141

420648A1

PLUG

1шт.

143

420649A1

BUSHING

1шт.

144

420650A1

BUSHING

1шт.
