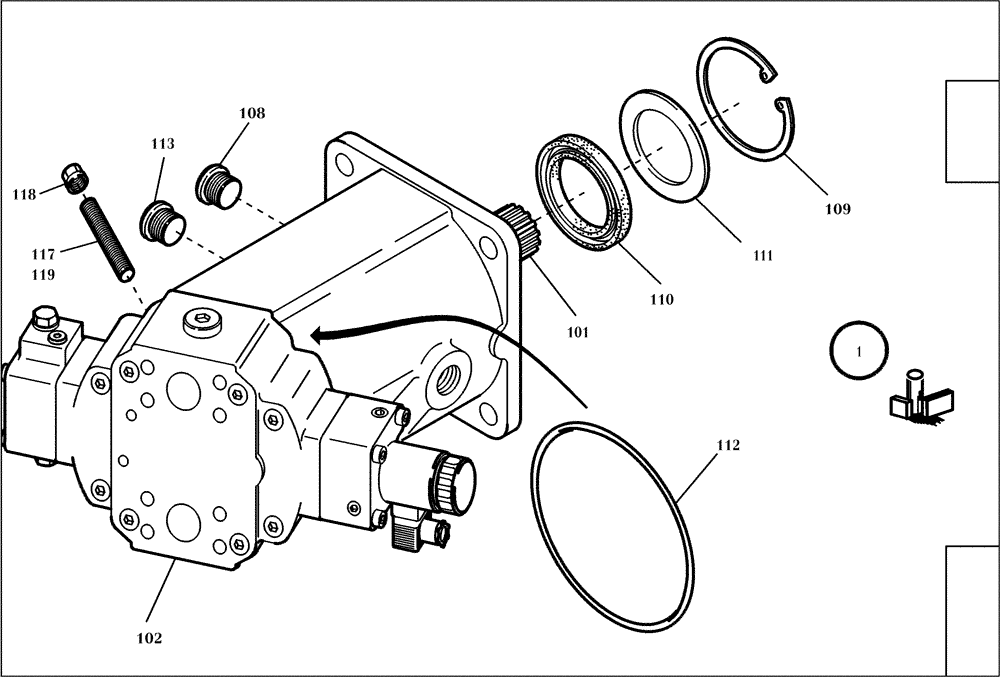

Запчасти Case 21D (22.120[001]) - AXIAL PISTON MOTOR INSTALLATION (S/N 561101-UP) No Description

1

423949A1

1шт.

1

420383A1

HYDRAULIC MOTOR

1шт.

101

420384A1

HYDRAULIC PUMP

1шт.

101

NS

NOT SERVICED

SEE FIGURE 22.122/001

1шт.

102

420412A1

DISTRIBUTOR

1шт.

102

NS

NOT SERVICED

SEE FIGURE 24.150/002

1шт.

108

420432A1

PLUG

1шт.

109

800-2172

SNAP RING

1шт.

110

420458A1

SEAL

1шт.

111

420459A1

BACK-UP RING

1шт.

112

420460A1

O-RING,0.139" Thk x 5.859" ID, -257, Cl 5, 75 Duro

1шт.

113

420432A1

PLUG

1шт.

117

420461A1

SCREW

1шт.

118

420462A1

NUT

2шт.

119

420463A1

PIN

1шт.
