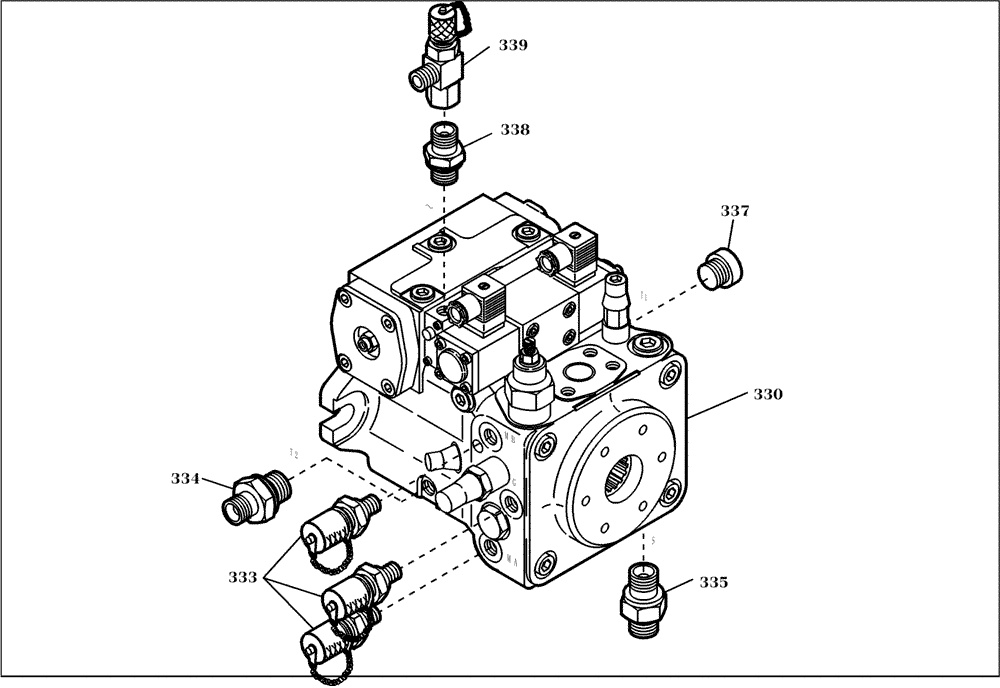

Запчасти Case 21D (22.060[001]) - AXIAL PISTON PUMP (S/N 561101-UP) No Description

330

NS

NOT SERVICED

SEE FIGURE 22.060/003

1шт.

330

NS

NOT SERVICED

SEE FIGURE 22.060/002

1шт.

333

420711A1

COUPLING

3шт.

334

420712A1

SOCKET

1шт.

335

420713A1

SOCKET

1шт.

337

420715A1

SOCKET

1шт.

338

420716A1

ELBOW

1шт.

339

420717A1

TEE

1шт.
