(20.010[001]) - HYDRAULIC SYSTEM BASIC MACHINE (S/N 561101-UP)

Запчасти Case 21D (20.010[001]) - HYDRAULIC SYSTEM BASIC MACHINE (S/N 561101-UP) No Description

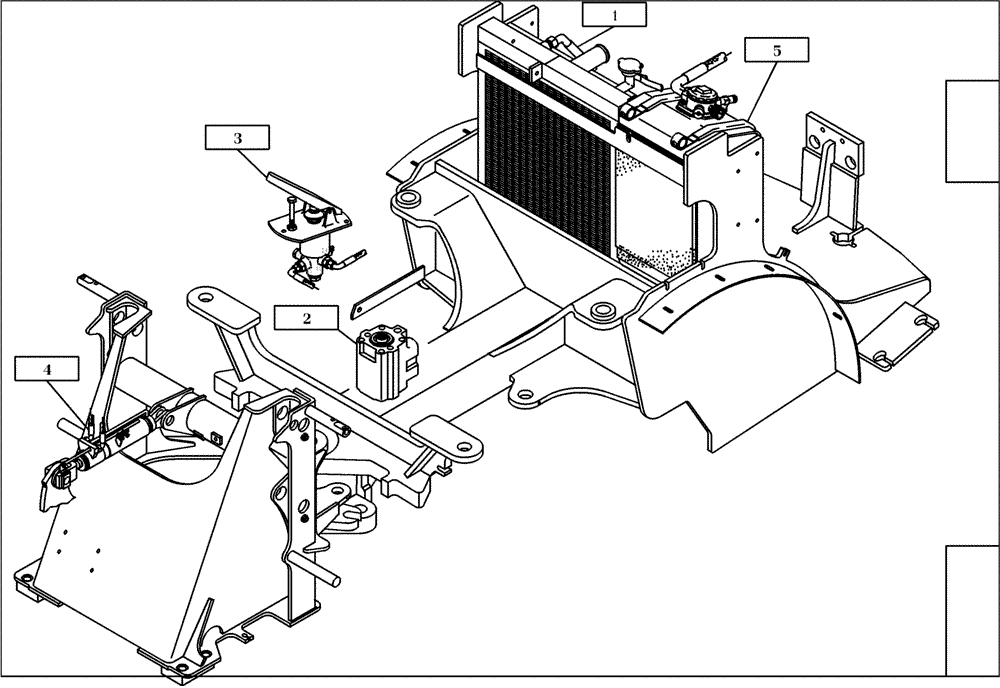

Схема запчастей Case 21D - (20.010[001]) - HYDRAULIC SYSTEM BASIC MACHINE (S/N 561101-UP) No Description
1
2
51
4
24
1
5
21
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

SEE FIGURE 20.100/001

1шт.

2

NS

NOT SERVICED

SEE FIGURE 20.530/001

1шт.

3

NS

NOT SERVICED

SEE FIGURE 20.540/001

1шт.

4

NS

NOT SERVICED

SEE FIGURE 20.500/001

1шт.

5

NS

NOT SERVICED

SEE FIGURE 10.100/001

1шт.

Выбрано товаров: 5
