(01.100[001]) - FRAME BASIC MACHINE COMPONENTS (S/N 561101-UP)

Запчасти Case 21D (01.100[001]) - FRAME BASIC MACHINE COMPONENTS (S/N 561101-UP) No Description

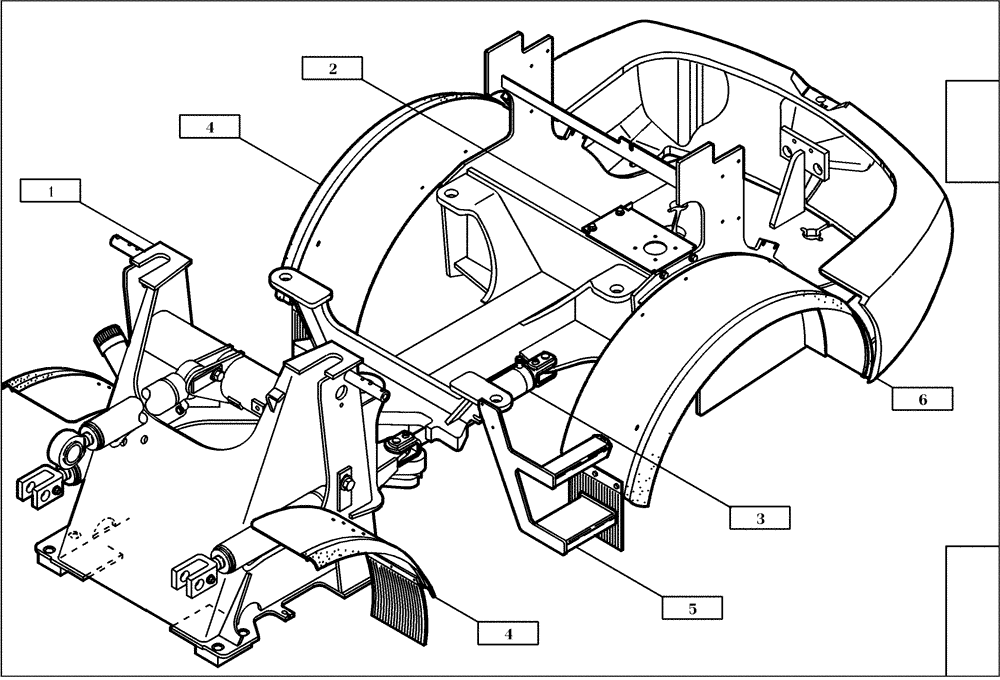

Схема запчастей Case 21D - (01.100[001]) - FRAME BASIC MACHINE COMPONENTS (S/N 561101-UP) No Description
5
4
4
6
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

SEE FIGURE 01.400/001

1шт.

2

NS

NOT SERVICED

SEE FIGURE 01.500/001

1шт.

3

NS

NOT SERVICED

SEE FIGURE 01.450/001

1шт.

4

NS

NOT SERVICED

SEE FIGURE 01.680/001

1шт.

5

NS

NOT SERVICED

SEE FIGURE 01.810/001

1шт.

6

NS

NOT SERVICED

SEE FIGURE 12.010/001

1шт.

Выбрано товаров: 6
