(15.121[001]) - COMB. COOL. SYST. WATER AND OIL MOUNTING PARTS (S/N 561101-UP)

Запчасти Case 21D (15.121[001]) - COMB. COOL. SYST. WATER AND OIL MOUNTING PARTS (S/N 561101-UP) No Description

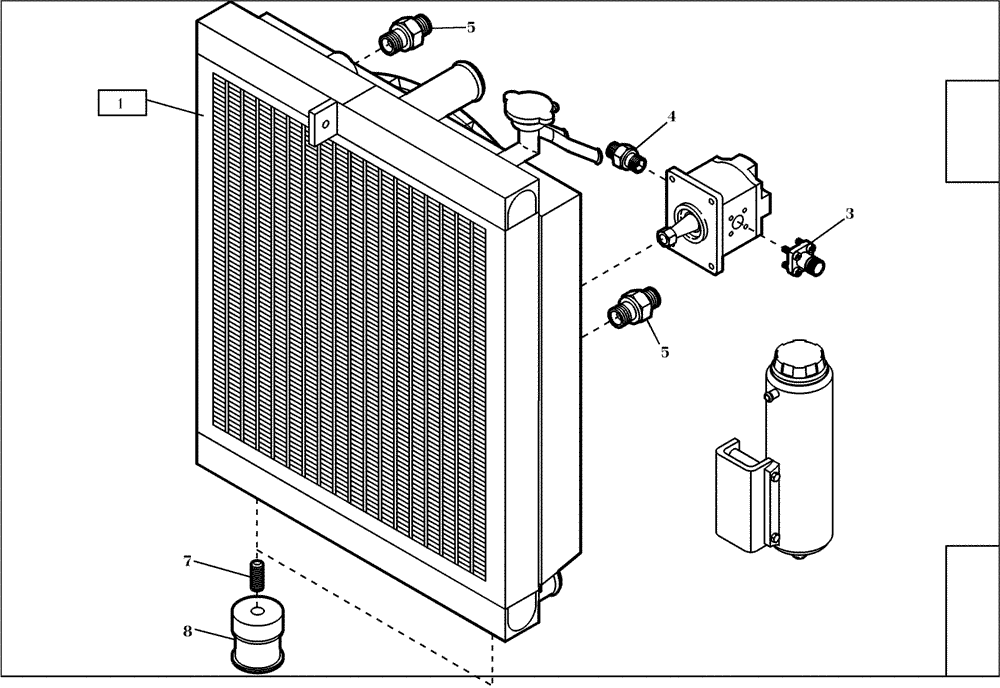

Схема запчастей Case 21D - (15.121[001]) - COMB. COOL. SYST. WATER AND OIL MOUNTING PARTS (S/N 561101-UP) No Description
4
3
7
5
8
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

SEE FIGURE 15.122/001

1шт.

3

420763A1

PIPE FITTING

2шт.

4

420477A1

HYD CONNECTOR

1шт.

5

420713A1

SOCKET

2шт.

7

420764A1

PIN

2шт.

8

420765A1

BEARING

2шт.

Выбрано товаров: 6
