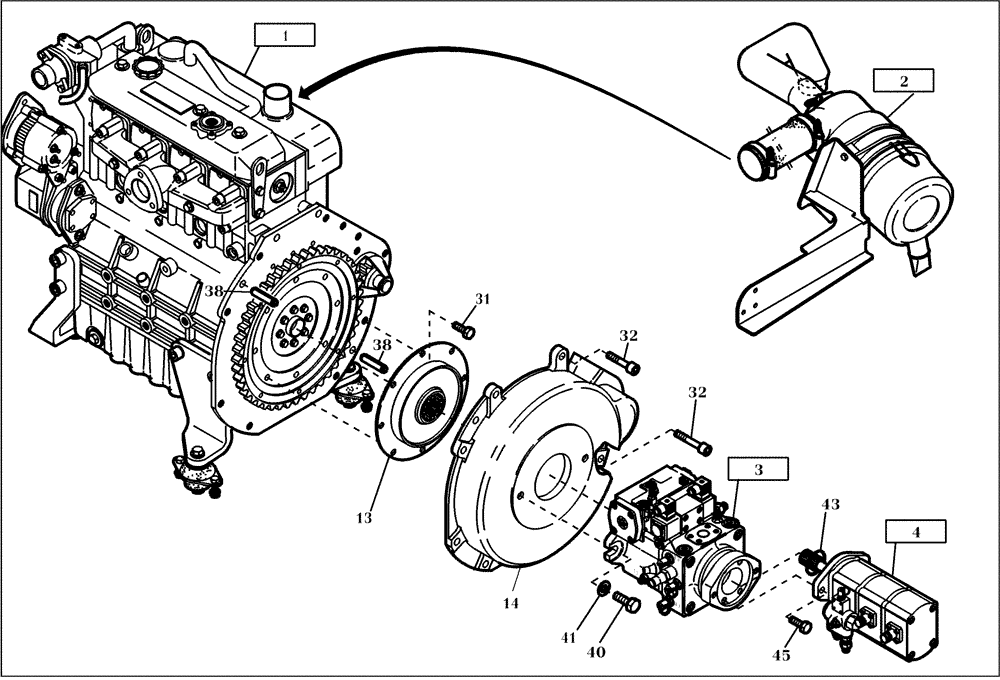

Запчасти Case 21D (13.010[001]) - ENGINE INSTALLATION (S/N 561101-UP) No Description

1

NS

NOT SERVICED

SEE FIGURE 13.020/001

1шт.

2

NS

NOT SERVICED

SEE FIGURE 13.230/001

1шт.

3

NS

NOT SERVICED

SEE FIGURE 22.060/001

1шт.

4

NS

NOT SERVICED

SEE FIGURE 22.020/001

1шт.

13

423915A1

FLEXIBLE COUPLING

1шт.

14

423916A1

FLANGE

1шт.

31

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

8шт.

32

864-10030

HEX SOC SCREW,M10 x 30mm, Cl 8.8

8шт.

38

420727A1

PIN

2шт.

40

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

41

423550A1

WASHER

2шт.

43

420729A1

O-RING

1шт.

45

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.
