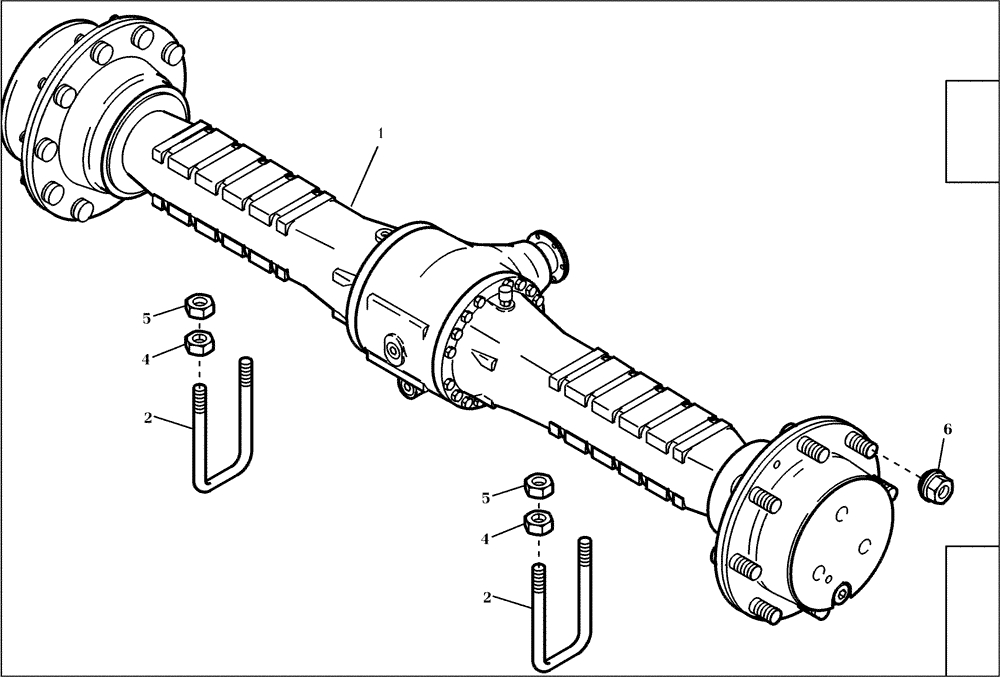

Запчасти Case 21D (02.060[001]) - RIGID AXLE INSTALLATION (S/N 561101-UP) No Description

1

NS

NOT SERVICED

SEE FIGURE 02.061/001

1шт.

2

420327A1

U-BOLT

BOLT "U"

2шт.

4

825-1424

NUT,M24, Cl 8

4шт.

5

832-46424

NUT,M24 x 3, Cl 8

4шт.

6

420328A1

WHEEL NUT

16шт.
