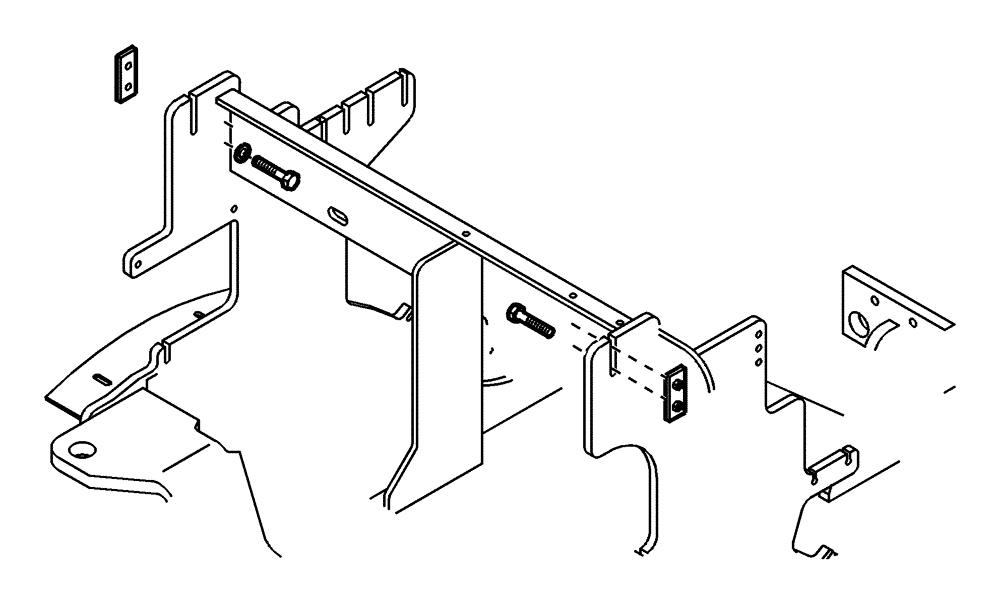

Запчасти Case 21D (36.020[001]) - ENGINE HOOD INSTALLATION (S/N 561101-UP) No Description

1

423892A1

ENGINE HOOD PANEL

1шт.

5

423472A1

GAS STRUT

1шт.

10

2929669

PLATE

2шт.

15

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

4шт.

20

2975165

WASHER

1шт.

21

2977453

WASHER

4шт.

25

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.
