(34.500[003]) - OPERATORS SEAT INSTALLATION CANOPY (OPTION) (S/N 561127-UP)

Запчасти Case 21D (34.500[003]) - OPERATORS SEAT INSTALLATION CANOPY (OPTION) (S/N 561127-UP) No Description

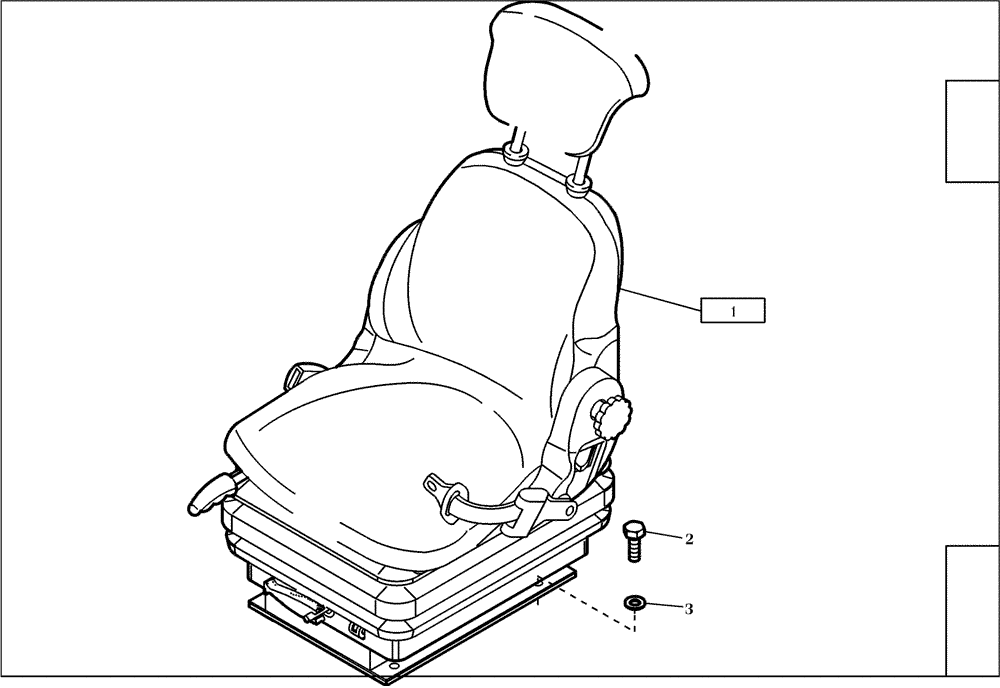

Схема запчастей Case 21D - (34.500[003]) - OPERATORS SEAT INSTALLATION CANOPY (OPTION) (S/N 561127-UP) No Description
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

SEE FIGURE 34.502/002

1шт.

2

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

3

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

4шт.
