(02.020[003]) - REAR AXLE INSTALLATION STANDARD (S/N 564401-UP)

Запчасти Case 21D (02.020[003]) - REAR AXLE INSTALLATION STANDARD (S/N 564401-UP) No Description

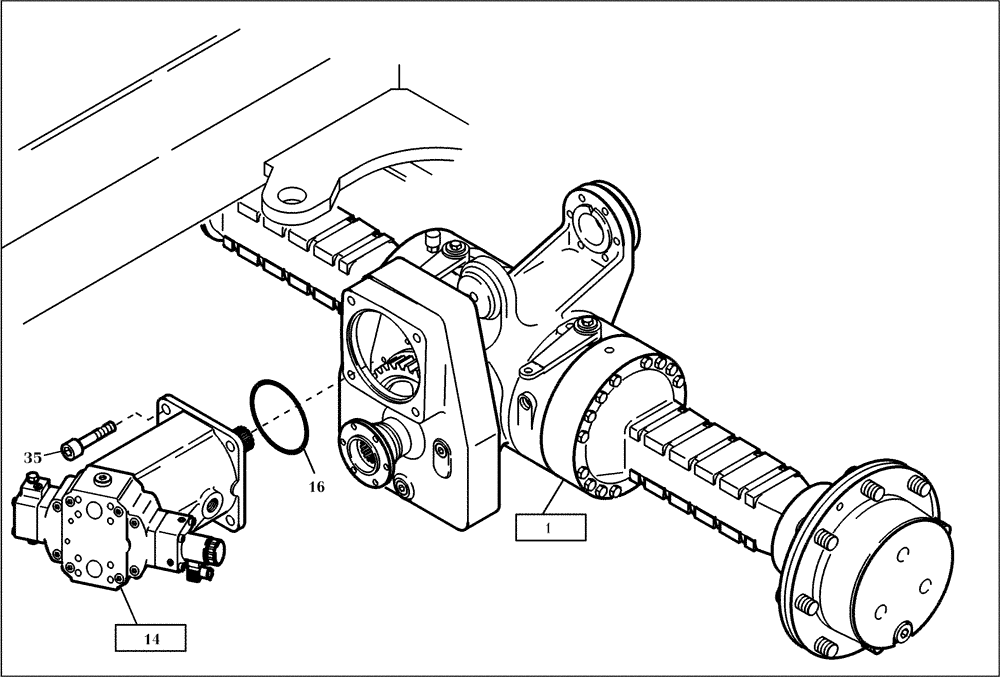

Схема запчастей Case 21D - (02.020[003]) - REAR AXLE INSTALLATION STANDARD (S/N 564401-UP) No Description
35
1
16
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

SEE FIGURE 02.021/002

1шт.

14

NS

NOT SERVICED

SEE FIGURE 22.120/001

1шт.

16

420465A1

SEALING RING

1шт.

35

864-12040

HEX SOC SCREW,M12 x 40mm, Cl 8.8

4шт.

90

423599A1

BOLT

1шт.

Выбрано товаров: 5
