(20.010[2987179000]) - HYDRAULIC SYSTEM BASIC MACHINE

Запчасти Case 21D (20.010[2987179000]) - HYDRAULIC SYSTEM BASIC MACHINE (35) - HYDRAULIC SYSTEMS

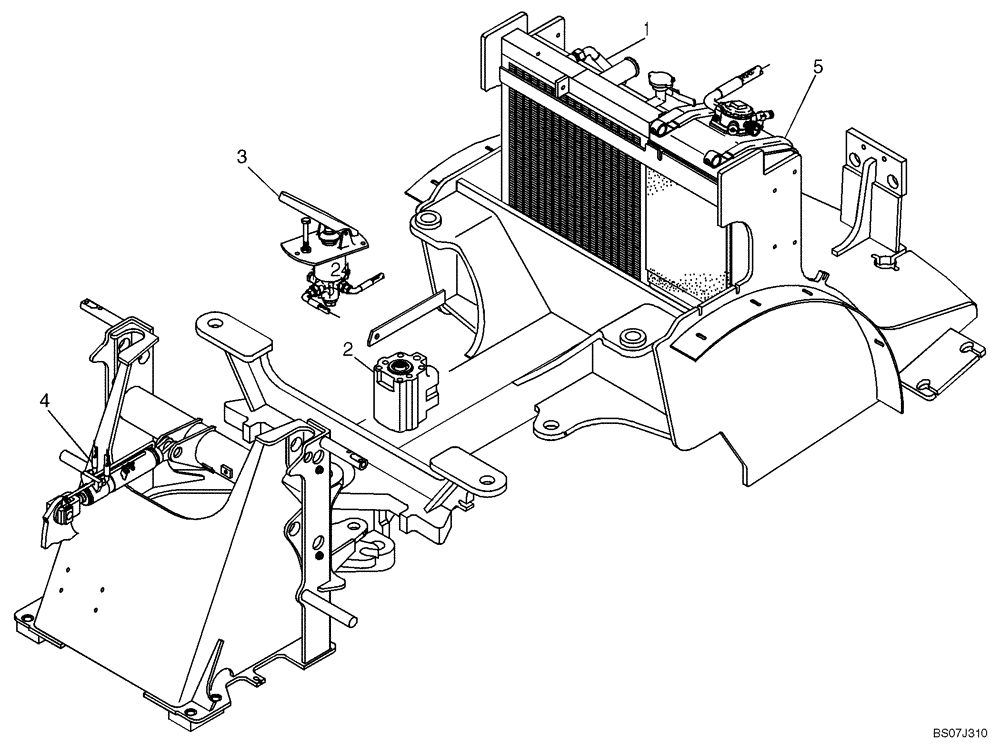

Схема запчастей Case 21D - (20.010[2987179000]) - HYDRAULIC SYSTEM BASIC MACHINE (35) - HYDRAULIC SYSTEMS
3
5
1
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Hydraulic System Driving (2772422), See Fig 20.100

1шт.

2

Hydraulic System Steering (2772423), See Fig 20.530

1шт.

3

Hydraulic System Brake (2772424), See Fig 20.540

1шт.

4

Hydraulic System Work (2772762), See Fig 20.500

1шт.

5

Hydraulic Oil Tank Installation (4552058), See Fig 10.100

1шт.
