Запчасти Case 21D (02.022[2988926000]) - SWING AXLE SELF-LOCKING (27) - REAR AXLE SYSTEM

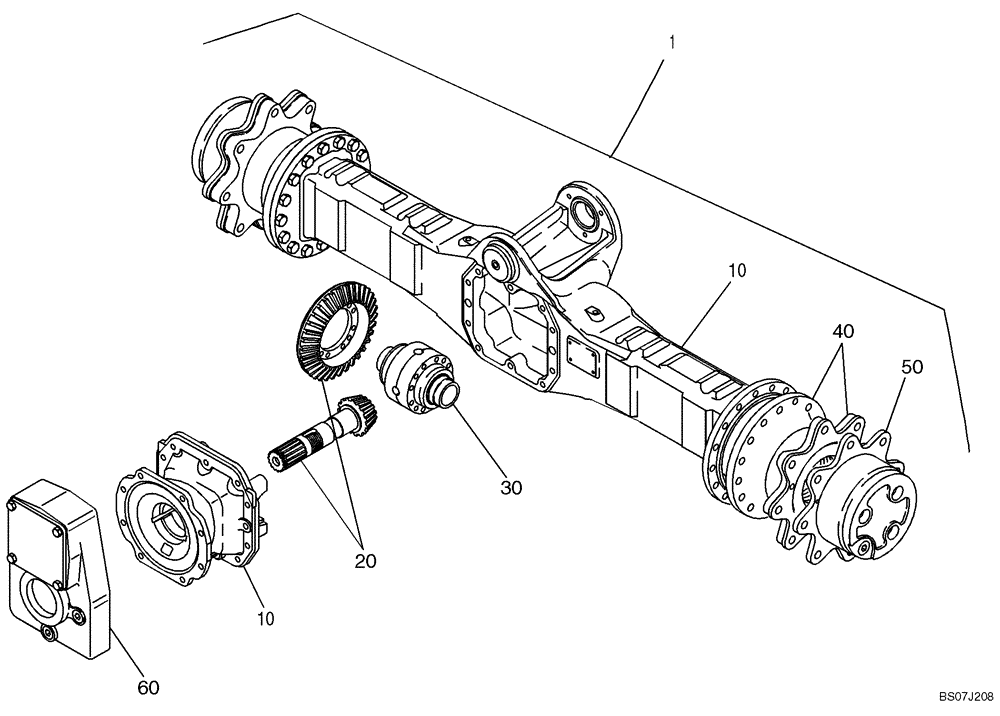

Схема запчастей Case 21D - (02.022[2988926000]) - SWING AXLE SELF-LOCKING (27) - REAR AXLE SYSTEM
1
20
10
60
50
40
10
30

Артикул

Название

Примечание

Количество

1

4552421

REAR AXLE

1шт.

10

Swing Axle Housing, (2988737) See Fig 02.023

1шт.

20

Differential, (2988738) See Fig 16.603

1шт.

30

Differential Self-Locking Rear, (2988741) See Fig 16.610

1шт.

40

Wheel Hub Rear, (2988739) See Fig 02.222

1шт.

50

Wheel Hub Planetary Gear, (2988740) See Fig 02.223

1шт.

60

Transfer Gearbox, (2988736) See Fig 16.082

1шт.

Выбрано товаров: 7
