Запчасти Case 21D (02.020 [2988924000]) - SWING AXLE INSTALLATION SELF-LOCKING - HYD HOSE-SSD, M. ANBAUT (27) - REAR AXLE SYSTEM

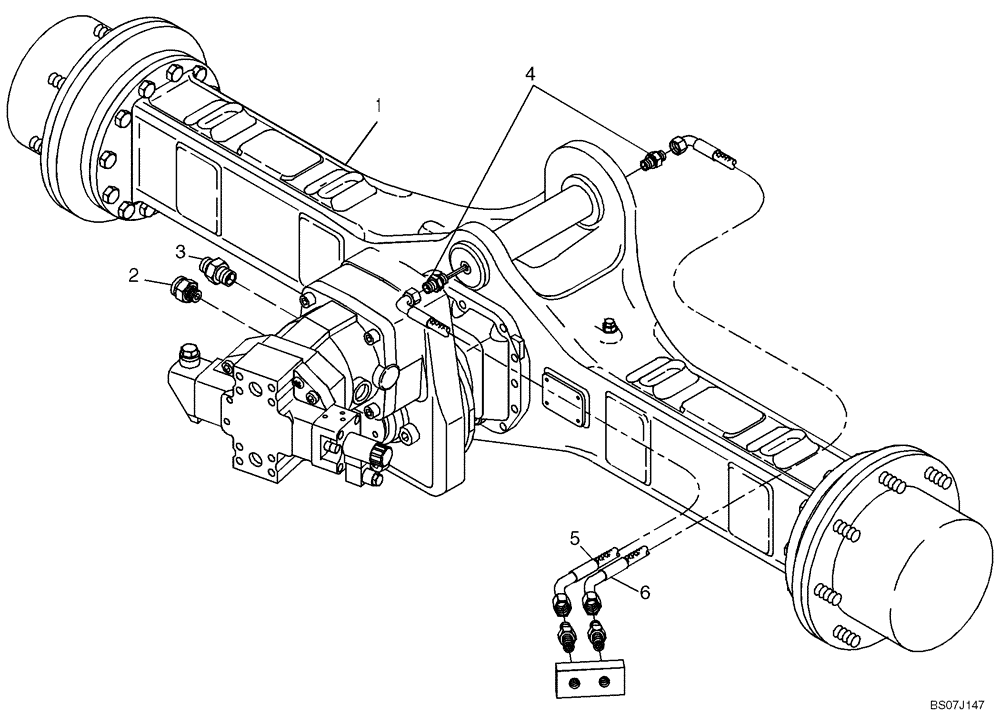

Схема запчастей Case 21D - (02.020 [2988924000]) - SWING AXLE INSTALLATION SELF-LOCKING - HYD HOSE-SSD, M. ANBAUT (27) - REAR AXLE SYSTEM
5
4
6
3
2
1

Артикул

Название

Примечание

Количество

1

Rear Swing Axle Self-Locking (4552420), See Fig 02.021

1шт.

2

420381A1

HYD CONNECTOR

1шт.

3

1148041

HYD CONNECTOR

Replaces 420477A1

1шт.

4

1768453

HYD CONNECTOR

Replaces 420267A1

2шт.

5

420471A1

HYDRAULIC HOSE

M5 x 1100

1шт.

6

420474A1

HYDRAULIC HOSE

M5 x 1400

1шт.

Выбрано товаров: 6
