Запчасти Case 21D (02.019[2988923000]) - SWING AXLE INSTALLATION SELF-LOCKING - WITH PIN-SSD, EINBAU (27) - REAR AXLE SYSTEM

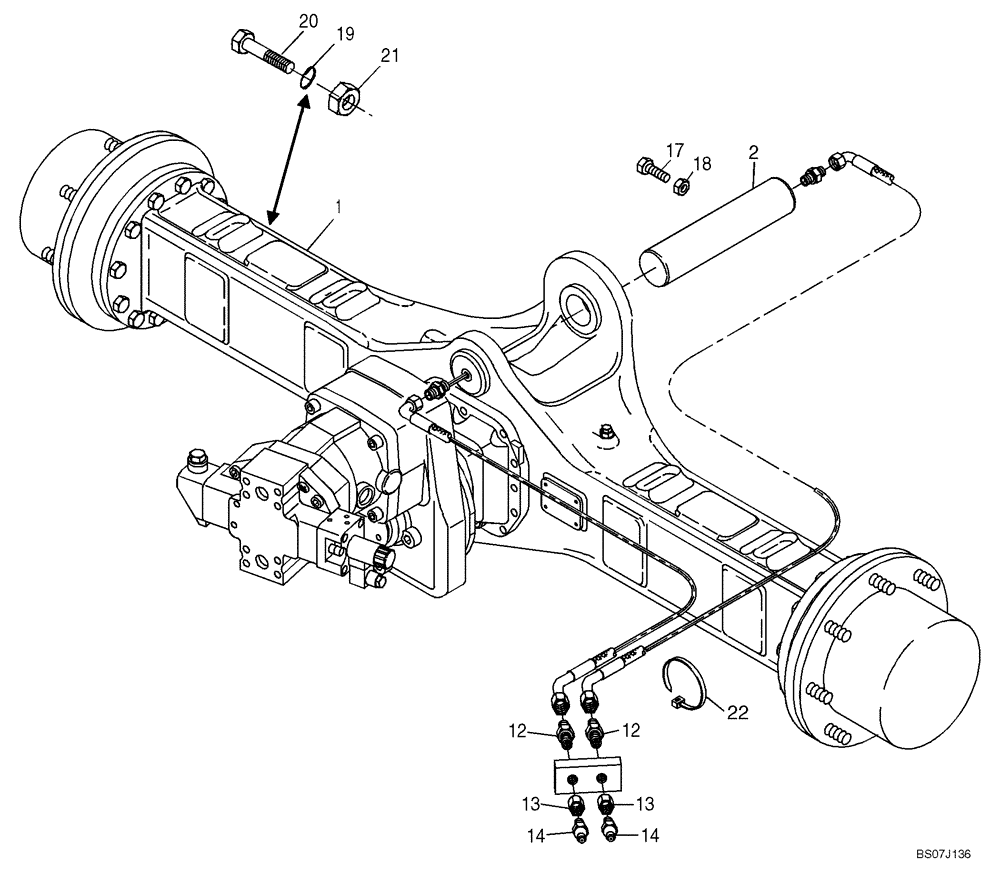

Схема запчастей Case 21D - (02.019[2988923000]) - SWING AXLE INSTALLATION SELF-LOCKING - WITH PIN-SSD, EINBAU (27) - REAR AXLE SYSTEM
20
2
1
19
22
14
13
12
13
12
17
14
21
18

Артикул

Название

Примечание

Количество

1

Rear Swing Axle Installation Self-Locking (4552419), See Fig 02.020

1шт.

2

2120409

PIN,50mm OD x 265mm L

Replaces 420375A1

1шт.

12

420382A1

HYD CONNECTOR

2шт.

13

69810

NUT

M12 x 1.5, Replaces 420476A1

2шт.

14

38918

LUBE NIPPLE

2шт.

17

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

18

825-1412

NUT,M12, Cl 8

1шт.

19

56992

WASHER,17mm ID x 30mm OD x 3mm Thk

M17 x 30 x 3

4шт.

20

108533

BOLT,Hex, M16 x 65mm, Cl 8.8

2шт.

21

987230

NUT,M16, Cl 10

2шт.

22

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP 8 x 188 mm

2шт.

Выбрано товаров: 11
