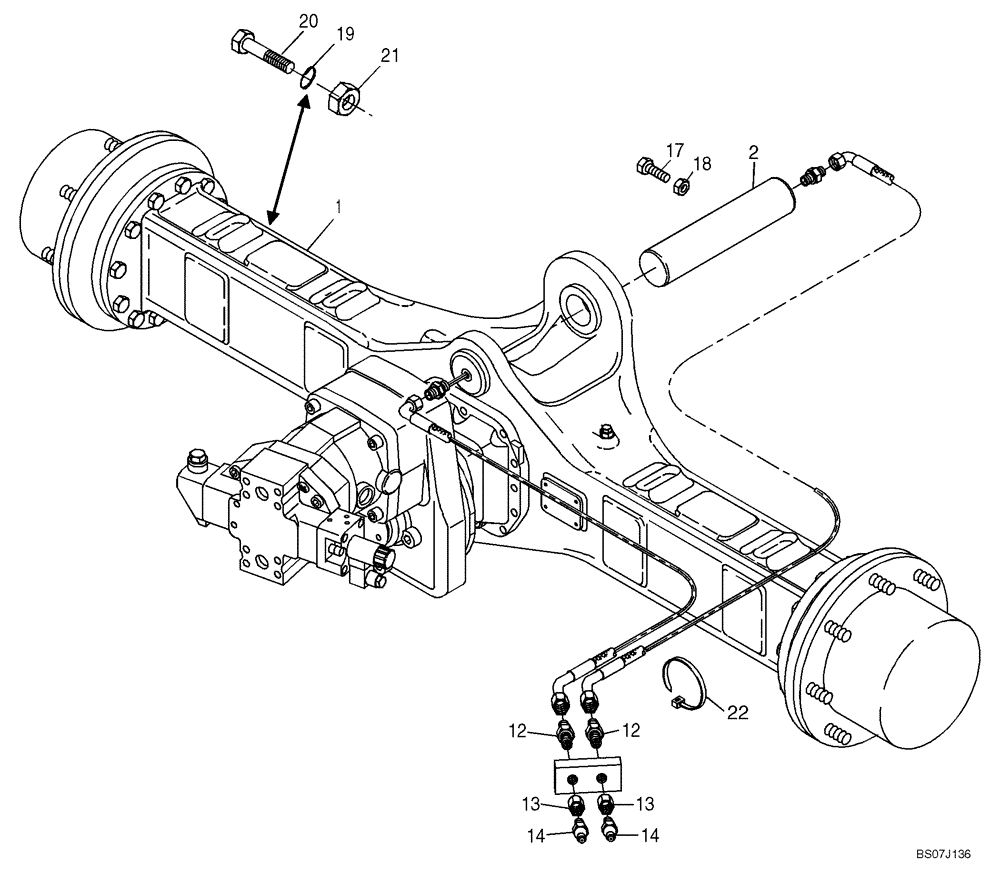

Запчасти Case 21D (02.015[4552412000]) - REAR AXLE (STANDARD) INSTALLATION (27) - REAR AXLE SYSTEM

1

Rear Axle Installation Standard (4552413), See Fig 02.016

1шт.

2

2120409

PIN,50mm OD x 265mm L

1шт.

12

4505471

HYD CONNECTOR

2шт.

13

69810

NUT

M12 x 1.5

2шт.

14

38918

LUBE NIPPLE

2шт.

17

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

18

57130

NUT,M12, Cl 8

1шт.

19

56992

WASHER,17mm ID x 30mm OD x 3mm Thk

M17 x 30 x 3

4шт.

20

108533

BOLT,Hex, M16 x 65mm, Cl 8.8

2шт.

21

987230

NUT,M16, Cl 10

2шт.

22

726789

CABLE TIE,M4.8 x 188

CABLE STRAP

2шт.
