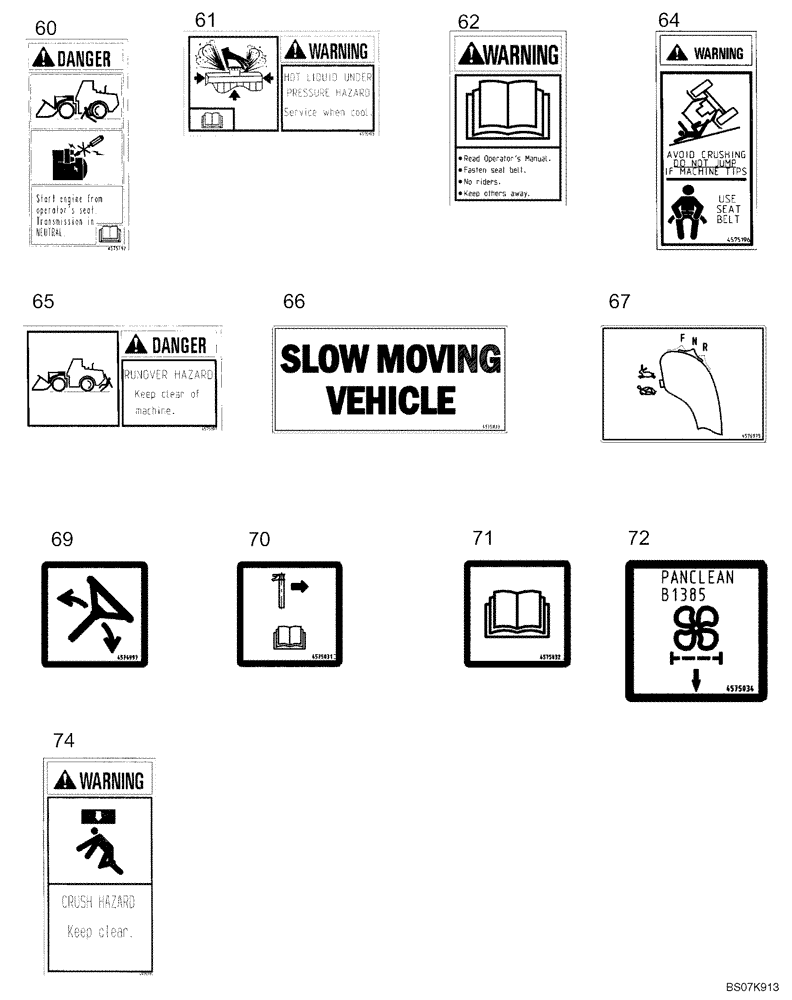

Запчасти Case 21D (91.026[2990057000]) - DECAL KIT CANOPY 2 OF 2 (90) - PLATFORM, CAB, BODYWORK AND DECALS

13

4572341

IDEOGRAM

Stop Engine, Replaces 421262A1

1шт.

15

4572106

DECAL

Battery Main Switch, Replaces 421264A1

1шт.

16

1288795

DECAL

Lift Points, Replaces 421265A1

4шт.

17

1288796

DECAL

Point Of Attachment Replaces 421266A1

4шт.

19

4572473

IDEOGRAM

Ball Valve Lock, Replaces 421268A1

1шт.

20

4572111

DECAL

Fuel, Replaces 421269A1

1шт.

21

4572112

DECAL

Windshield Washing Water, Replaces 421270A1

1шт.

22

4572115

IDEOGRAM

Engine Cool Replaces 421271A1ant

1шт.

24

4576456

DECAL

Instruction lift, sink, ankippen, open, Replaces 424173A1

1шт.

25

4572503

IDEOGRAM

Hand Brake, Replaces 421274A1

1шт.

26

4572505

IDEOGRAM

Quick Change Pin, Replaces 421275A1

1шт.

27

4572502

DECAL

Carrier Position Shovel, Replaces 421276A1

1шт.

28

2900296

DECAL

Fire Protection, not shown, Replaces 423748A1

1шт.

29

4572504

IDEOGRAM

Security Box, Replaces 423749A1

1шт.

30

NS

NOT SERVICED

Identification Plate (USA)

1шт.

31

72761

RIVET

4шт.

40

2772347

IDEOGRAM

Axle Mount Nut, Replaces 424319A1

1шт.

50

4575182

WARNING DECAL

Check Attachment, Replaces 364742A1

1шт.

51

4575183

WARNING DECAL

Pressurized System Hazard, Replaces 335889A1

1шт.

52

4575184

WARNING DECAL

Danger Explosion Hazard, Replaces 412471A1

1шт.

54

4575186

WARNING DECAL

Crush Hazard, Replaces 323694A1

2шт.

55

4575187

WARNING DECAL

Crush Hazard Keep Clear Support, Replaces 328754A1

2шт.

56

4575188

WARNING DECAL

Crush Hazard Engage Frame Lock Before Service, Replaces 329047A1

1шт.

57

4575189

DANGER DECAL

Pressurized System Hazard, Replaces 328904A1

1шт.

58

4575190

WARNING DECAL

Entanglement Hazard, Replaces 332512A1

1шт.

59

4575191

WARNING DECAL

Entanglement Hazard, Replaces 388112A1

1шт.

60

4575192

WARNING DECAL

Danger Start Engine from Operators Seat, Replaces 334456A1

1шт.

61

4575193

WARNING DECAL

Collent Under Pressure, Replaces 329044A1

2шт.

62

4576457

WARNING DECAL

Read Operators Manual, Replaces 424174A1

1шт.

64

4575196

WARNING DECAL

Use Seat Belts, Replaces 321-7030

1шт.

65

4575197

DANGER DECAL

Danger, Runover Hazard, Replaces 328752A1

1шт.

66

4575033

DECAL

Slow Moving Vehicle, Replaces 423902A1

1шт.

67

4576975

DECAL

Joystick Instruction, Replaces 424175A1

1шт.

69

4574997

IDEOGRAM

Adjust Steering Column, Replaces 423905A1

1шт.

70

4575031

IDEOGRAM

Towing Pin, Replaces 423906A1

1шт.

71

4575032

IDEOGRAM

Handbook, Replaces 423907A1

1шт.

72

4575034

IDEOGRAM

Fresh Air Filter, Replaces 423908A1

1шт.

74

4575235

WARNING DECAL

Crush Hazard, Keep Clear, Replaces 423910A1

2шт.
