Запчасти Case 21D (91.023[2990056000]) - DECAL KIT (N.A.) 2 OF 2 (90) - PLATFORM, CAB, BODYWORK AND DECALS

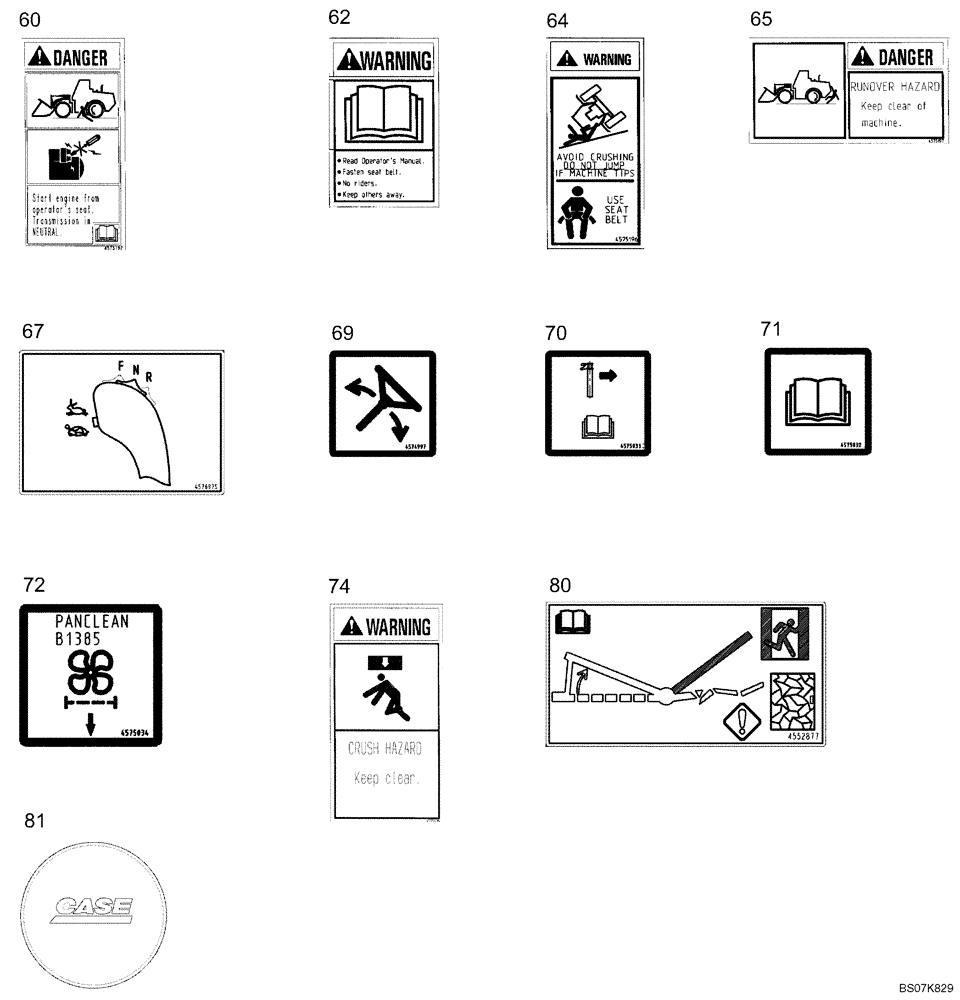

Схема запчастей Case 21D - (91.023[2990056000]) - DECAL KIT (N.A.) 2 OF 2 (90) - PLATFORM, CAB, BODYWORK AND DECALS
62
74
60
72
80
81
64
67
69
71
65
70

Артикул

Название

Примечание

Количество

13

4572341

IDEOGRAM

Stop Engine

1шт.

15

4572106

DECAL

Battery Main Switch

1шт.

17

1288796

DECAL

Point Of Attachment

4шт.

20

4572111

DECAL

Fuel

1шт.

21

4572112

DECAL

Windshield Washing Water

1шт.

24

4572108

DECAL

Instruction lift, sink, ankippen, open

1шт.

25

4572503

IDEOGRAM

Hand Brake

1шт.

26

4572505

IDEOGRAM

Quick Change Pin

1шт.

27

4572502

DECAL

Carrier Position Shovel

1шт.

29

4572504

IDEOGRAM

Security Box

1шт.

30

NS

NOT SERVICED

Identification Plate (USA)

1шт.

31

72761

RIVET

4шт.

38

4576764

DECAL

HTS

1шт.

39

4552911

DECAL

Series 2

2шт.

40

2772347

IDEOGRAM

Axle Mount Nut

1шт.

50

4575182

WARNING DECAL

Check Attachment

1шт.

51

4575183

WARNING DECAL

Pressurized System Hazard

1шт.

52

4575184

WARNING DECAL

Danger Explosion Hazard

1шт.

53

8603092

WARNING DECAL,55mm x 95mm H

Ether

1шт.

54

4575186

WARNING DECAL

Crush Hazard

2шт.

55

4575187

WARNING DECAL

Crush Hazard Keep Clear Support

2шт.

56

4575188

WARNING DECAL

Crush Hazard Engage Frame Lock Before Service

1шт.

57

4575189

DANGER DECAL

Pressurized System Hazard

1шт.

58

4575190

WARNING DECAL

Entanglement Hazard

1шт.

59

4575191

WARNING DECAL

Entanglement Hazard

1шт.

60

4575192

WARNING DECAL

Danger Start Engine from Operators Seat

1шт.

62

4575194

WARNING DECAL

Read Operators Manual

1шт.

64

4575196

WARNING DECAL

Use Seat Belts

1шт.

65

4575197

DANGER DECAL

Danger, Runover Hazard

1шт.

67

4576974

DECAL

Joystick Instruction

1шт.

69

4574997

IDEOGRAM

Adjust Steering Column

1шт.

70

4575031

IDEOGRAM

Towing Pin

1шт.

71

4575032

IDEOGRAM

Handbook

1шт.

72

4575034

IDEOGRAM

Fresh Air Filter

1шт.

74

4575235

WARNING DECAL

Crush Hazard, Keep Clear

2шт.

80

4552877

PLATE

Broken Glass

1шт.

81

4552876

PLATE

50mm Series 2

1шт.

Выбрано товаров: 37
